Bel Canto e.ONE Phono Pre Amplifier

Bel Canto e.ONE Phono Pre Amplifier
  Zoom
Bel Canto e.ONE Phono Pre AmplifierBel Canto e.ONE Phono Pre AmplifierBel Canto e.ONE Phono Pre Amplifier
£2,000.00
(£1,666.67 Exc. VAT)



Delivery In 1-3 Days

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

  • Optimized two stage architecture
  • Low noise 40dB input stage
  • Custom discrete output stage
  • Precision RIAA network
  • High drive output buffer
Bel Canto Design
Secured by Thawte

Why buy from us?

Bel Canto e.ONE Phono Pre Amplifier

The PHONO preamp will unleash tremendous dynamics and resolution to your listening experience.

DSSA, Discreet Single Stage Amplifier
This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains very low constant distortion levels through the audio band because of its high open-loop bandwidth. The DSSA module brings a further element of dynamic resolution and contrast to the e.One Phono. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design.

Gain and Resistance Customization

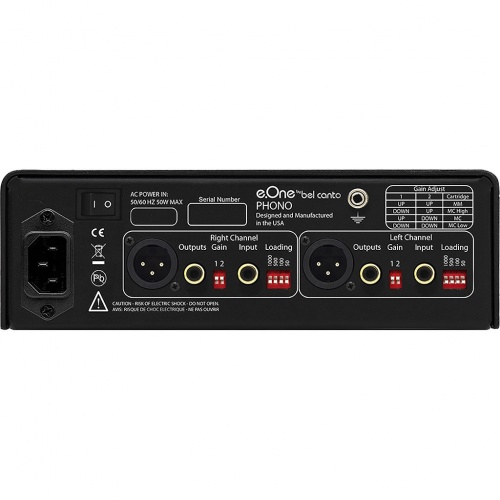

The PHONO can work with a wide variety of cartridges by adjusting the dip switches for gain and resistance on the back of the unit.

Shipping typically 1-3 days
  • Optimized two stage architecture
  • Low noise 40dB input stage
  • Custom discrete output stage with adjustable gain
  • Precision RIAA network
  • High drive output buffer
  • Low noise multi-stage channel independent power supply
  • Ground optimized PCB layout
  • Optimized two stage architecture
  • Low noise 40dB input stage
  • Custom discrete output stage with adjustable gain
  • Precision RIAA network
  • High drive output buffer
  • Low noise multi-stage channel independent power supply
  • Ground optimized PCB layout
  • Bandwidth: 1Hz-50KHz
  • RIAA Accuracy: 20Hz-20KHz +/- 0.2 dB
  • Signal to Noise Ratio 40 dB gain: >80 dB A weighted, re 5mV RMS in
  • Distortion @ 2 Volt RMS/1KHz: <0.01%
  • Input Impedance: Adjustable 31 to 47k (View dip switch alignment)
  • Gain Level Options: Adjustable 38dB to 60dB (View dip switch alignment)
  • Power On usage: 10W
  • Power Off usage: 0.0W
  • Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
  • Size: 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D)
  • Weight: 10lbs, 4.5Kg
