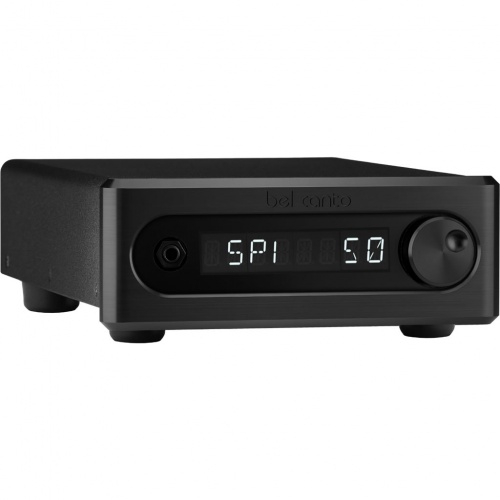

Bel Canto e.ONE DAC2.8 Control Preamp

Bel Canto e.ONE DAC2.8 Control Preamp

Incredible audio performance, features, and flexibility, the DAC2.8 is musically open, detailed, and natural sounding.

• Class Leading 124dB Dynamic Range
• 24 Bit Volume Control
• 24/192 Asynchronous USB2.0
• Analogue Input
• 5 Asynchronous Digital Inputs
• High Current Headphone Output Driver
• Remote Control

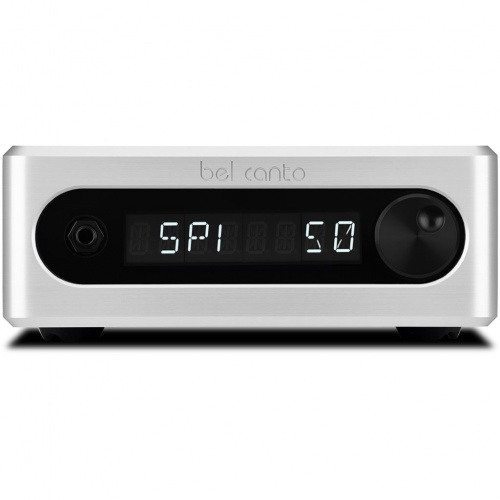

• Available in Black or Silver Faceplate
• MAC USB 2.0 compatibility and custom Windows USB 2.0 driver

• HDR Core is the result of 20+ years of engineering to refine the digital to analogue process, and is comprised of 3 major components: Low Noise and Ultra Low Noise Master Clocks, Advanced Asynchronous Interfaces, and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every e.One DAC and Integrated product, creating the most realistic, open, and defined musical experience possible.
• Built In Headphone Output. This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.
• Simple, Elegant Interface designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.
• Asynchronous USB Input. 24/192 Asynchronous input works with the internal dual Ultra Low Noise Femtosecond clocks to provide unprecedented audio sound quality and impact from your computer audio sources.

Digital Section:

• Maximum Data Input Rate:
• 24bit Data at 192KS/s: AES XLR, SPDIF BNC/RCA, TOSLINK, USB
• Master Clock noise: 0.07 picoseconds RMS

Analog 24/192 DAC Section:

• Maximum Output: 4.5Vrms balanced XLR, 2.25Vrms RCA
• Output Impedance: 200 ohms balanced XLR, 100 ohms RCA
• Frequency Response: 20Hz-20KHz, +/- 0.5dB
• THD+N: <0.001%, 1KHz
• Output Noise: 3.3uVrms A-weighted 20Hz-20KHz
• Dynamic Range: 124dB A-weighted 20Hz-20KHz

Analog 24/192 ADC Section:

• Maximum Input: 2.5 Vrms RCA
• Input Impedance: 12K ohms RCA
• THD+N: 0.003%, 2.5Vrms in, 1KHz
• Dynamic Range: 110dB, A-weighted 20Hz-20KHz

Headphone Section:

• Headphone Output Current and Voltage Level: 4.5Vrms, 300mA
• THD+N: 0.0015% 1KHz
• Output Noise: 3.3uVrms, A-weighted 20Hz-20KHz

General:

• Power Usage On: 8W
• Power Usage Off: 0.0W
• Power Requirement: 100-120VAC, 220-240VAC 50/60 Hz
• Dimensions: 8.5" W x 12.5" D x 3.5" H (216 mm x 318 mm x 88 mm)
• Weight: 14lbs. (6.5 kg)

Features and specifications are subject to improvements and changes without prior notice.
