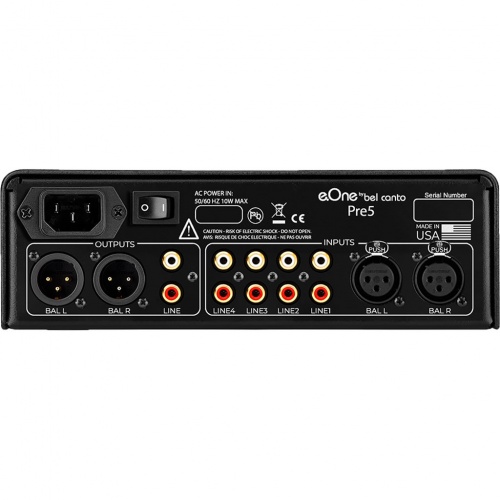

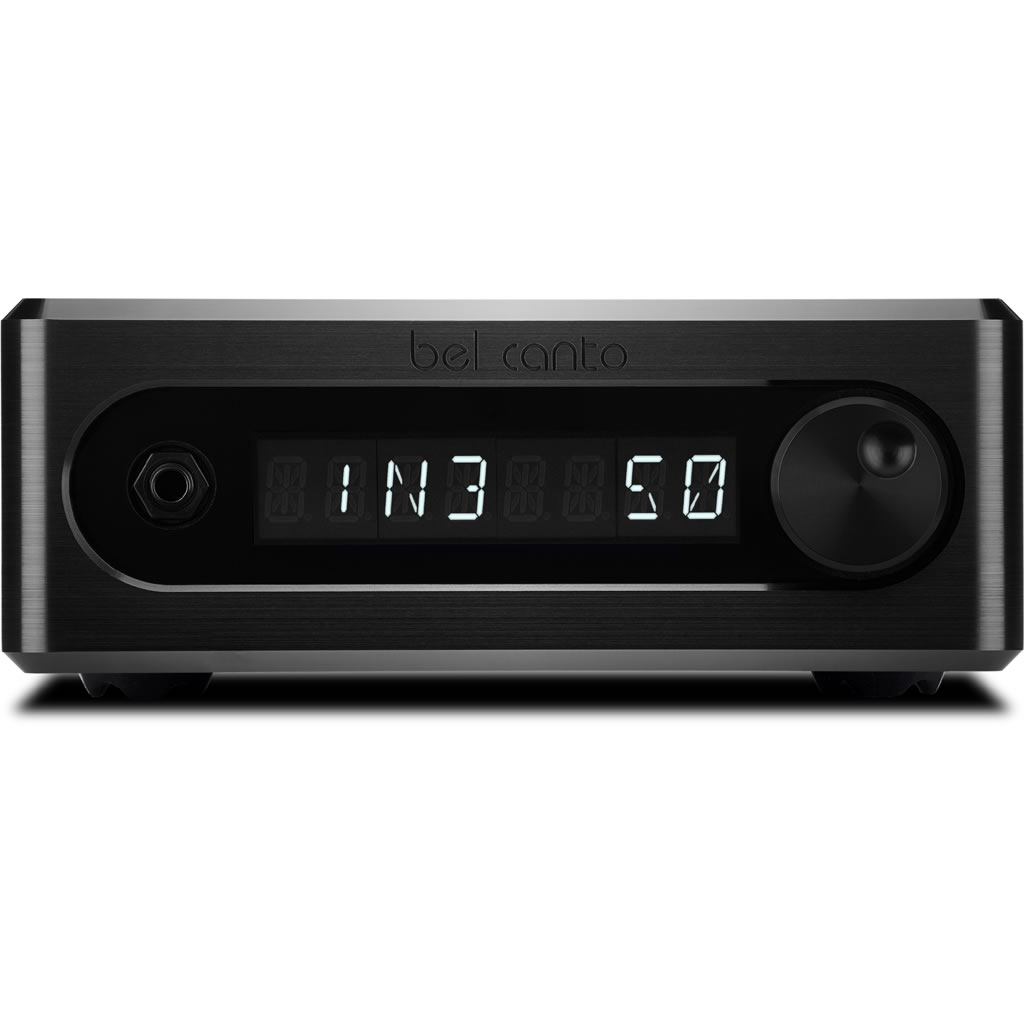

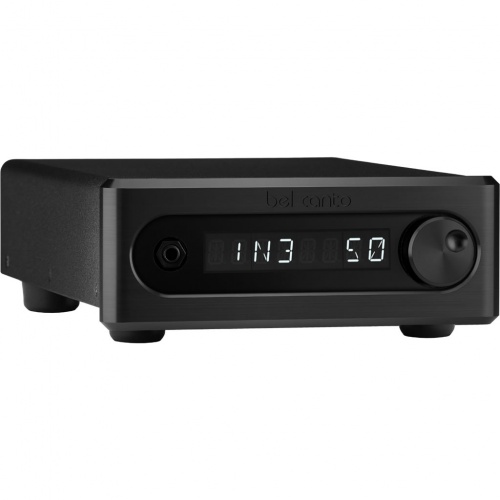

Bel Canto e.One Pre5 Balanced Analogue Control Preamplifier

Bel Canto e.One Pre5 Balanced Analogue Control Preamplifier

The e.One Pre5 is a highly dynamic fully balanced analogue preamplifier. The precise circuitry and compact balanced architecture deliver a pure signal to your amplifier revealing the detail and natural tone of the finest recordings.

• Fully Balanced Internal Architecture for Lowest Noise and Distortion
• XLR and 4 High Quality RCA Inputs
• Independently Buffered XLR and RCA Outputs
• Remote Control

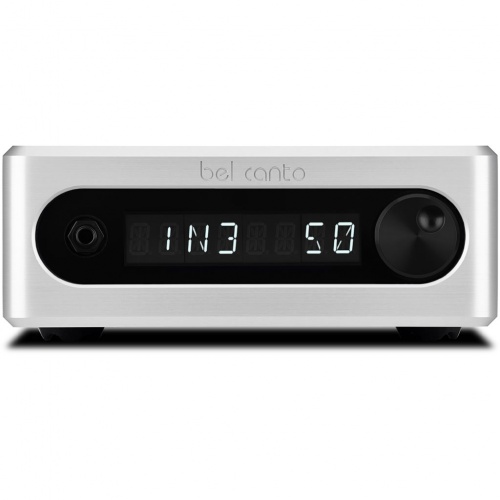

• Available in Silver or Black Faceplate

• The Pre5 sophisticated circuit architecture and component choices raises the bar of traditional analog control preamp.
• The Ultra-low distortion and noise performance is the result of a fully balanced internal architecture and discrete high current output buffers that provide a compelling combination of dynamic resolution, impact, and musical presence.
• 125dB Dynamic Range preserves all recorded information
• Distortion below 0.001% for pure sound
• High current discrete custom output buffers

Analog Inputs::

• Balanced Input Impedance: 10k Ohms
• Single-ended Line Input Impedance: 50k Ohms
• Maximum Input Level Balanced: 5Vrms
• Maximum Input Level Single Ended: 2.5Vrms
• Maximum Output Level, RCA and XLR 5Vrms
• Distortion at 1Vrms Output: <0.002% 1KHz
• Dynamic Range: 125dB A-Weighted re: 5Vrms
• Single-ended Line Out Impedance: 50 Ohms
• Balanced Output Impedance: 100 Ohms

General:

• Output Connections: XLR and RCA Outputs
• Power Usage On: 4W
• Power Usage Off: 0.0W
• Power Input: 100-120VAC, 220-240VAC 50/60 Hz
• Fuse Littlefuse 214 Series, 3 ampere, time-lag, 250VAC, 5x20mm ceramic body fuse
• Dimensions: 8.5" W x 12" D x 3.5" H (216 mm x 305 mm x 88 mm)
• Weight: 13lbs. (6.5 kg)

Features and specifications are subject to improvements and changes without prior notice.
