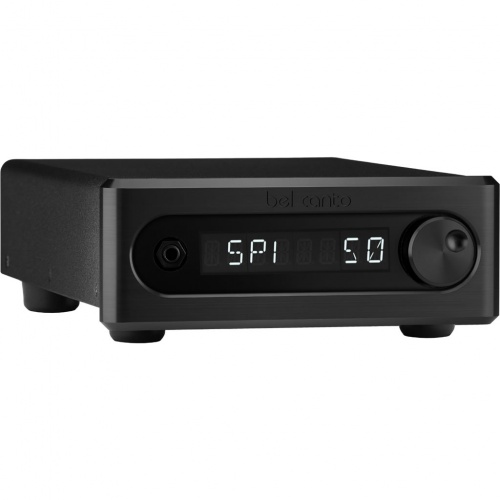

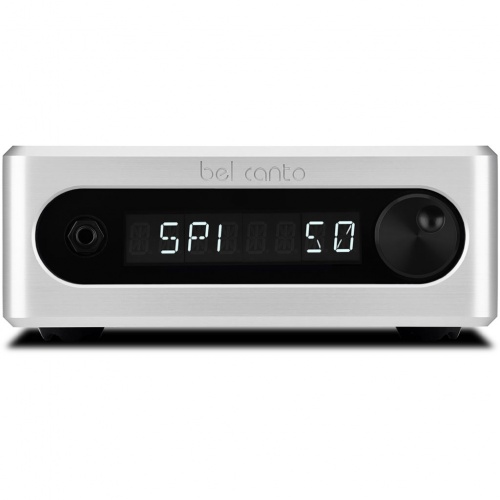

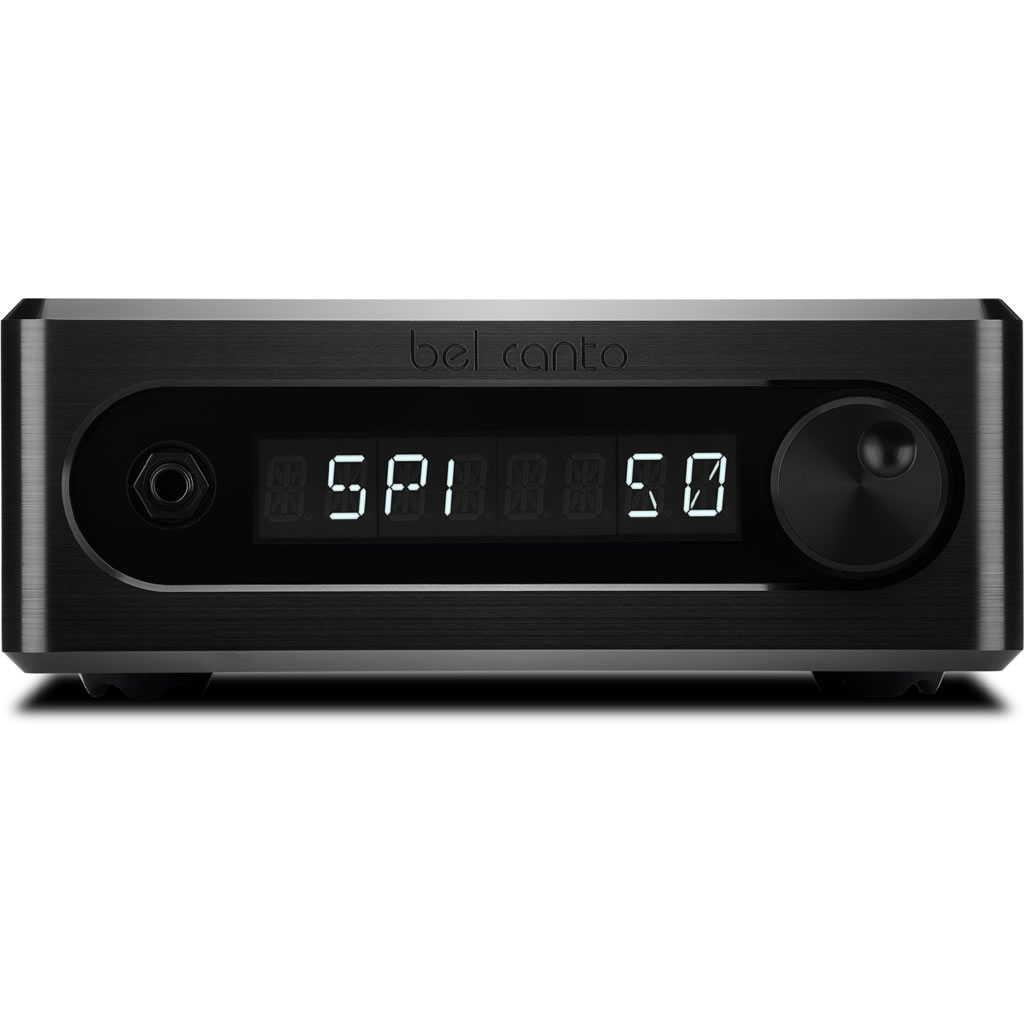

Bel Canto e.One C6i DAC Integrated Amplifier

Bel Canto e.One C6i DAC Integrated Amplifier

The C6i Integrated Amplifier is steeped in audiophile performance. Designed in a compact aluminum chassis with 6 high quality inputs and 120W power. Precision circuitry and dedicated signal paths provide the highest detail and resolution for both analog and digital sources.

• USB 2.0 24/192 and DSD 128(DOP)
• 24/192 High-Dynamic Range DAC
• 125-Watt power amplifier
• Analog RIAA MM Phono Stage
• Quality Headphone Output
• Remote Control

• HDR Core is the result of 20+ years of engineering to refine the digital to analogue process, and is comprised of 3 major components: Low Noise and Ultra Low Noise Master Clocks, Advanced Asynchronous Interfaces, and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every e.One DAC and Integrated product, creating the most realistic, open, and defined musical experience possible.
• Built In Headphone Output. This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.
• Simple, Elegant Interface The dual-functioning single knob interface provides easy navigation of the menu, selecting inputs and controlling volume, plus it comes with a 36-button infrared remote that controls all functions from 30 feet away. Combined with the large LED display that makes it easy to access and control all functions.

Digital Section:

• Maximum Data Input Rate:
• 24bit Data at 192KS/s: AES XLR, SPDIF BNC/RCA, TOSLINK, USB
• Master Clock noise: 0.07 picoseconds RMS

Amplifier Section:

• Power Output 1% THD: 125W per channel
• Minimum Load: 2 ohms per channel
• Peak Output Current: 12.5 amperes
• Frequency Response: +/-3 dB 1.5Hz-90KHz
• THD+N: 0.003% 1W, 1KHz, 4 ohms
• IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
• Output Noise: <30uVRMS A-weighted 10Hz-20KHz
• Damping factor: >400
• Output Impedance at 100Hz: <20 milliohms
• Dynamic Range: 120dB

Digital Inputs:

• Maximum Data Input Rate
• 24bit Data at 192KS/s: SPDIF RCA x2, TOSLINK x2, USB

Analogue Inputs:

• Line in impedance: 47 Kohms, 2Vrms max
• Phono in impedance: 47 Kohms//150pF
• Phono accuracy: +/-0.25dB, 50Hz-15kHz

General:

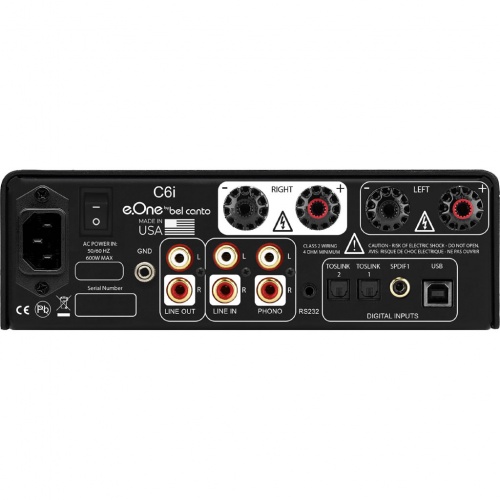

• Output connections: 2-sets of WBT NextGen Binding Posts, RCA Line Out, Headphone Output
• Headphone Output Current and Voltage Level: 100mA peak
• Line Out Impedance: 500 ohms
• Power On usage: 14W
• Power Off usage: 0.0W
• Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
• Size: 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D)
• Weight: 13lbs, 6.5Kg

Features and specifications are subject to improvements and changes without prior notice.
