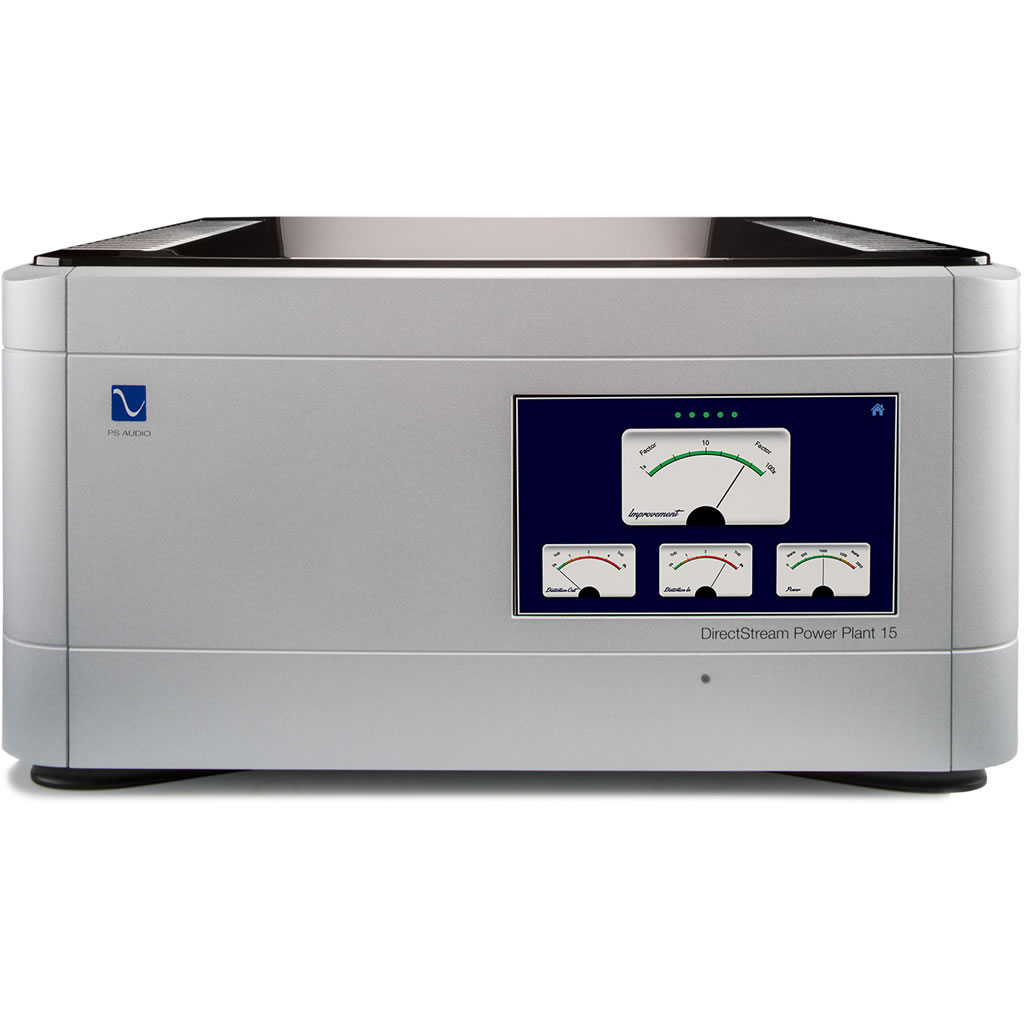

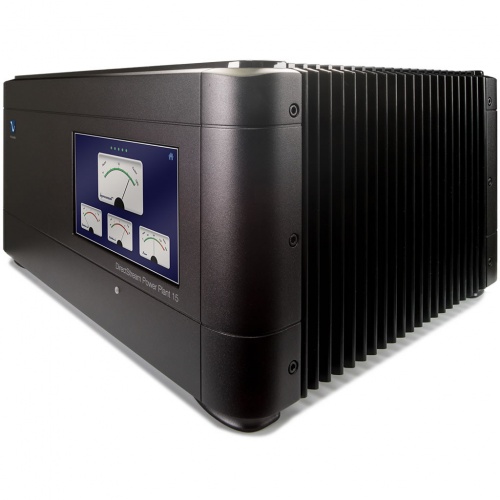

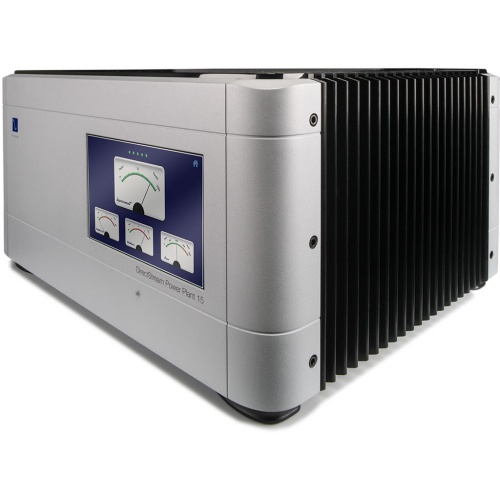

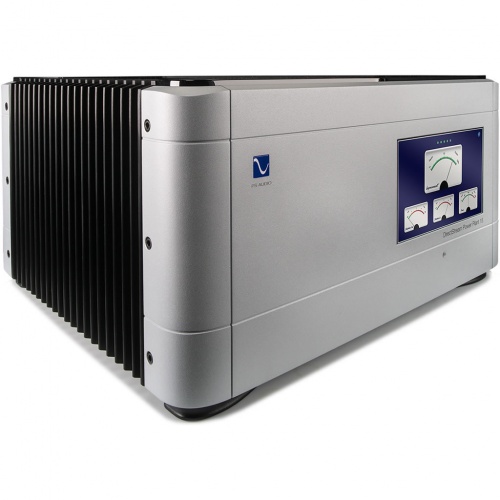

PS Audio DirectStream Power Plant 15

Reference standard AC power delivery and protection

Purify, protect, regulate, and rebuild unrestricted new power from old. The DirectStream P15 Power Plant is the gold standard for safety, reliability, and high-performance AC power regeneration. The P15 improves micro and macro dynamics, audio purity, instrumental separation, soundstage width and depth, and lowers background noise for any connected equipment. The P15 is the successor to the venerable P10 Power Plant, a tireless performer faithfully powering thousands of high-performance audio and video system around the world for nearly a decade. The P15 has been completely redesigned from the ground up with three times lower output impedance, lower distortion, a new FPGA based DSD sine wave generator, and an improved level of performance never before attained by any Power Plant of its size. If high-performance audio or video is your goal, there’s no better foundation for any system than a Power Plant AC regenerator.

The DirectStream Power Plant 15 is the next generation of AC power regeneration. It features an all new analog power amplifier and FPGA based sine wave generator based on pure, clean, analog DSD (PDM).  The P15 has 5 separate regenerated zones, buss bar delivery system, and 1500 watts of pure regenerated power. From medium to large power amplifiers to the smallest pieces of source equipment, the P15 will work magic on your system’s performance. Expect far better micro and macro dynamics as well as a cleaner, lower noise background.

Don’t starve your music or risk damaging your equipment. A P15 gives you greatly improved performance and safety from just plugging into the wall socket and far better dynamics, bass and a much bigger, open soundstage than any power conditioner on the market. Why settle for anything but a Power Plant? Take one home and try it today.

Shipping typically 2-3 days
  • Built in Boulder
  • 1500 VA output
  • Passively cooled
  • 3X lower impedance than P10

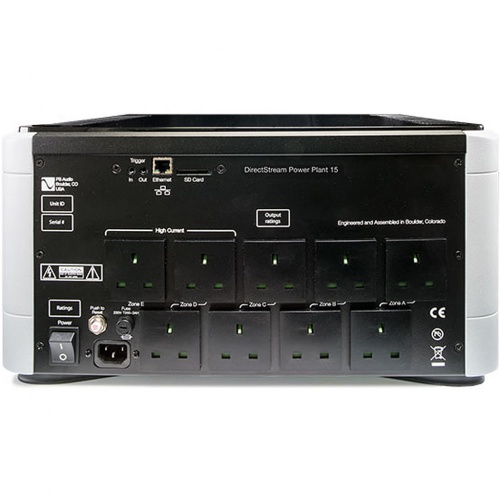

  • 10 outlets US
  • 15 amp AC input US
  • 120 volt regulated US
  • Range 95 – 145 VAC US
  • 9 EU/AU/GR/UK outlets
  • 10 amp AC input EU/AU/GR/UK
  • 230 volt Regulated EU/AU/GR/UK
  • Range 200 –285VAC EU/AU/GR/UK
  • 100% regenerated AC
  • MultiWave
  • Pure Sine Wave
  • Integrated oscilloscope
  • THD meter
  • Improvement meter
  • Power meter
  • Control over the web
  • Adjustable output voltage
  • Colour touchscreen
  • Field upgradable
  • 82 pounds boxed
  • 17W x 8.5H x 14D

Environment Specification

US/JP

Europe/Asia

Location

Indoor use only

Indoor use only

Duty Cycle

Suitable for continuous operation

Suitable for continuous operation

Moisture Sensitivity

Not sealed against moisture

Not sealed against moisture

Operating Humidity

<80%rh

<80%rh

Storage Temperature

-40C to +40C

-40C to +40C

Operating Temperature

0C to 40C

0C to 40C

Max Operating Altitude

12,000’ (3500m)

12,000’ (3500m)

Electrical Supply Nominal Rating

120V 15A 60Hz US
100V 15A 50/60 Hz JP

230V 10A 50/60Hz

Specification



Unit Dimensions

17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H)

17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H)

Unit Weight

73 lbs ( 33kg)

73 lbs ( 33kg)

Shipping Dimensions

23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm)

23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm)

Shipping Weight

82 lbs (38kg)

82 lbs (38kg)

Nominal Input Voltage

95 – 145 VAC

200 –285VAC

Maximum Continuous Load

1200VA

1500VA

Maximum Peak Load

1500VA

2000VA

Voltage Regulation

1V

1V

Output Distortion (Resistive Load)

<0.5%
0.1% typical

<0.9%
0.2% typical

Output Distortion (Reactive Load)

<0.5%
0.1% typical

<0.9%
0.2% typical

Output Impedance

<0.008 ohm

<0.008 ohm

Noise Reduction

100kHz – 2MHz >80dB

100kHz – 2MHz >80dB

Efficiency @1200 VA

>85%

>85%

Standby Power Consumption



Input Frequency

45 – 65 Hz

45 – 65 Hz

Under Voltage Limit

Continuous -10% of setting 15 sec duration -15% of setting

Continuous -10% of setting 15 sec duration -15% of setting

Over Voltage Limit

Continuous 5% of setting 15 sec duration 10% of setting

Continuous 5% of setting 15 sec duration 10% of setting

Energy Dissipation

2440J

3670J

Peak Current Surge

144,000A

84,000A

Max Surge Voltage

6,000V

6,000V

Clamp Level

330V

800V

DC Trigger Configuration

Tip Positive

Tip Positive

DC Trigger Voltage

5 – 15Vdc

5 – 15Vdc
