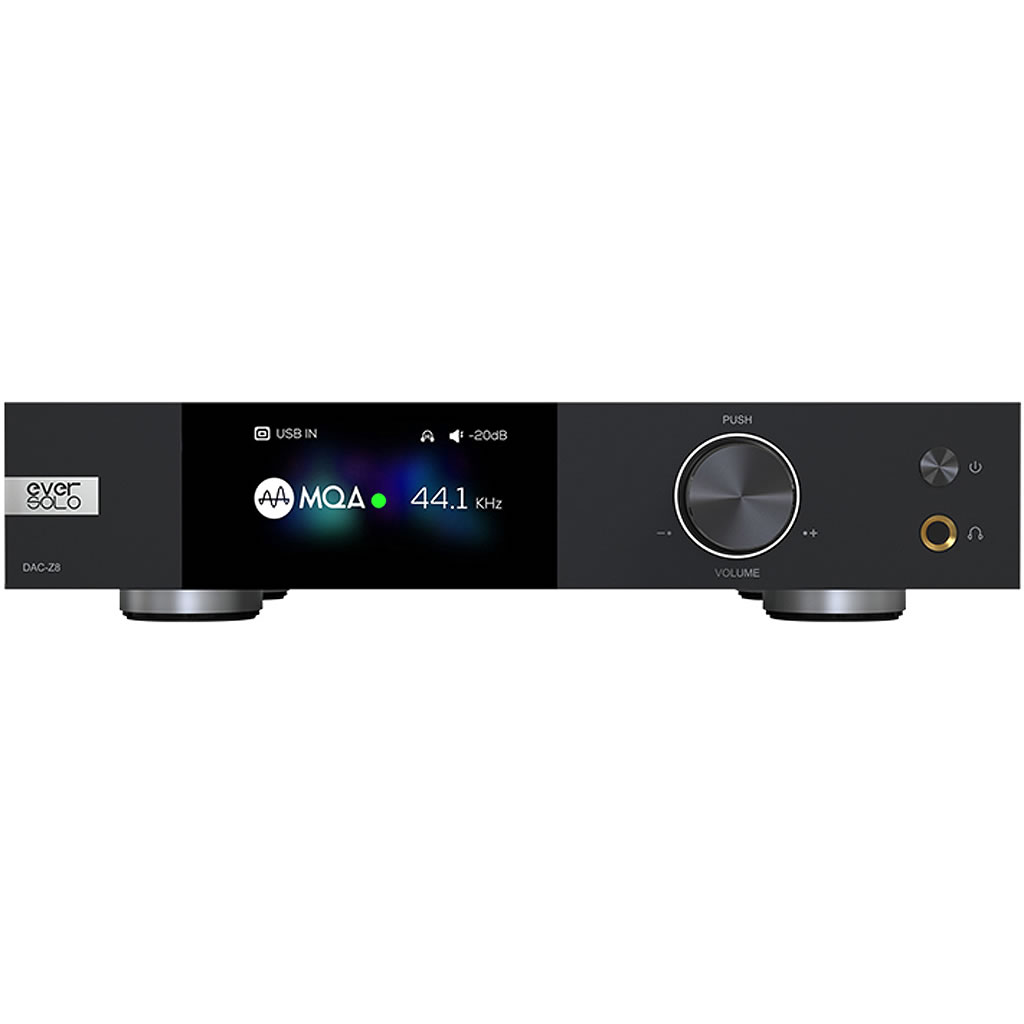

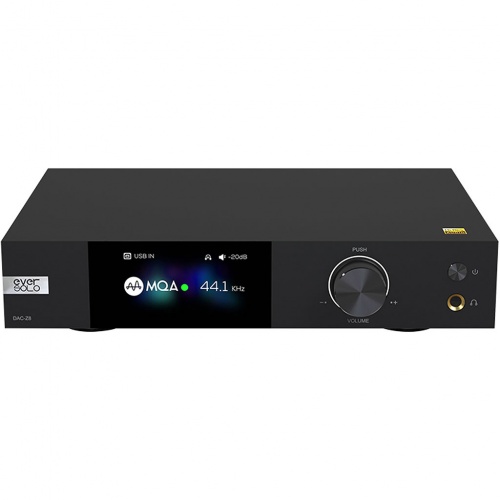

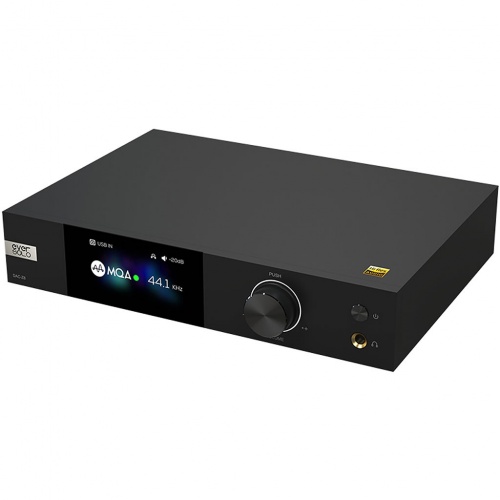

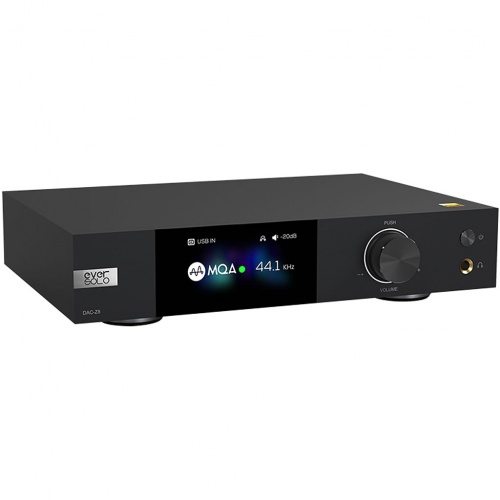

EverSolo DAC-Z8 DAC

EverSolo DAC-Z8 DAC

The Eversolo DAC-Z8 is a compact audio decoder with excellent workmanship and high performace.

Coming with the 3rd integration of XMOS 316 and ESS flagship ES9038 Pro DAC chip, the decoding formats support up to DSD512, PCM 768Khz@32Bit and MQA full decoding. It has exceptional sound quality, good pre-amp performance and strong headphone driving force. Rich inputs make the device be a good partner of high end headphones and stereo speakers.

• ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.
• The 3rd generation XMOS XU316 with higher performance and faster speed.
• High precision, low jitter dual clock oscillators synchronous processing.
• OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.
• Up to DSD512 Native, PCM768KHz@32Bit decoding.
• Optical, Coaxial and USB support MQA full decoding and rendering.
• Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol.
• Fully balanced audio architecture, differential amplifier circuit and professional calibration.
• High-performance headphone amp output, 16-300 ohm headphone driver.
• 3-inch LCD screen, with diverse VU meter modes.
• Low ripple power supply to ensure a purer power source.
• Exclusive mobile phone controller APP for global control.

• Model: EverSolo DAC-Z8
• Display Screen: 3-inch LCD Screen
• Chassis: Aviation aluminum alloy
• DAC: ES 9038Pro
• Audio Processor: XMOS XU316
• OPA Chip: OPA1612*10
• Power Supply: Low noise switching power supply
• Bluetooth Audio Input: Qualcomm QCC5125 Bluetooth module, BT5.0, Support SBC/AAC/aptX/aptX LL/aptX, HD/LDAC Bluetooth protocol
• USB-B DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit and MQA
• USB-C DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit, MQA
• Optical Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
• Coaxial Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

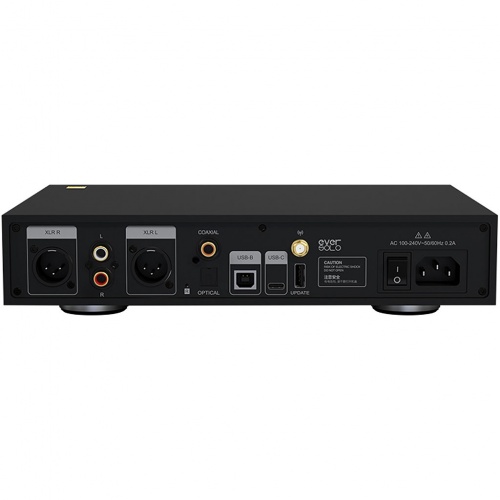

• Analog Audio Output: Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended
• USB Port: USB2.0*1（only for firmware upgrade）
• Control Methods: Remote control, mobile APP control and knob control
• Headphone Impedance: 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
• XLR Audio Characteristics: Oput level(Vrms): 4.1Vrms@0dBFS, THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz,
• THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz, Noise@No-wt: <1.2uVrms, SNR @No-wt: 133dB@1kHz, Frequency response: 20Hz-20kHz(±0.1dB), Crosstalk: -130dB@1kHz, DNR @No-wt: 133dB@1kHz
• RCA Audio Characteristics: Output level (Vrms): 2.3Vrms@0dBFS, THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz), THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz), Noise @No-wt: <1.5uVrms, SNR @No-wt: 126dB@1kHz
• Frequency response: 20Hz-20kHz(±0.1dB), Crosstalk: -123dB@1kHz, DNR@No-wt: 126dB@1kHz
• Headphone (low gain mode): Output level(Vrms): 1.2Vrms@0dBFS, Maximum undistorted power: 45 mW@32Ω
• THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz), THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz), Noise @No-wt: <2uVrms, SNR@No-wt: 124dB@1kHz
• Frequency response: 20Hz-20kHz(±0.1dB)
• DNR @No-wt: 119dB@1kHz
• Headphone (high gain mode): Output level(Vrms): 1.2Vrms@0dBFS, Maximum undistorted power: 26 mW@300Ω
• THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz), THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz), Noise@No-wt: <2uVrms, SNR@No-wt: 124dB@1kHz, Frequency response): 20Hz-20kHz(±0.1dB), DNR @No-wt: 124dB@1kHz
• Power Input: AC 110~240V 50/60Hz
• Rated Power: 9W
• Dimensions: 270mm(W) * 187mm(D)* 50mm(H)
• Packing List: Remote control*1, power cable*1, USB cable*1, product manual*1
