EverSolo DAC-Z6 DAC

EverSolo DAC-Z6 DAC

DAC-Z6 is a compact audio decoder with excellent workmanship and high perforance.

With the integration of XMOS 316 and double ES9068 DAC chips, the decoding formats support up to DSD512, PCM 768Khz@32Bit and MQA full decoding. It has exceptional sound quality, good preamp performance and strong headphone driving force. Rich inputs make the device a good partner for high end headphones and stereo speakers.

• Dual ES9068 D\A converter chip, independent decoding for dual channel.
• The 3rd generation XMOS XU316 with higher performance and faster speed.
• High precision, low jitter dual clock oscillators synchronous processing.
• Up to DSD512 Native, PCM768Hz@32Bit decoding.
• Optical, Coaxial and USB support MQA full decoding and rendering.
• Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.
• Fully balanced audio architecture, differential amplifier circuit and professional calibration.
• High-performance headphone amp output, 16-300 ohm headphone driver.

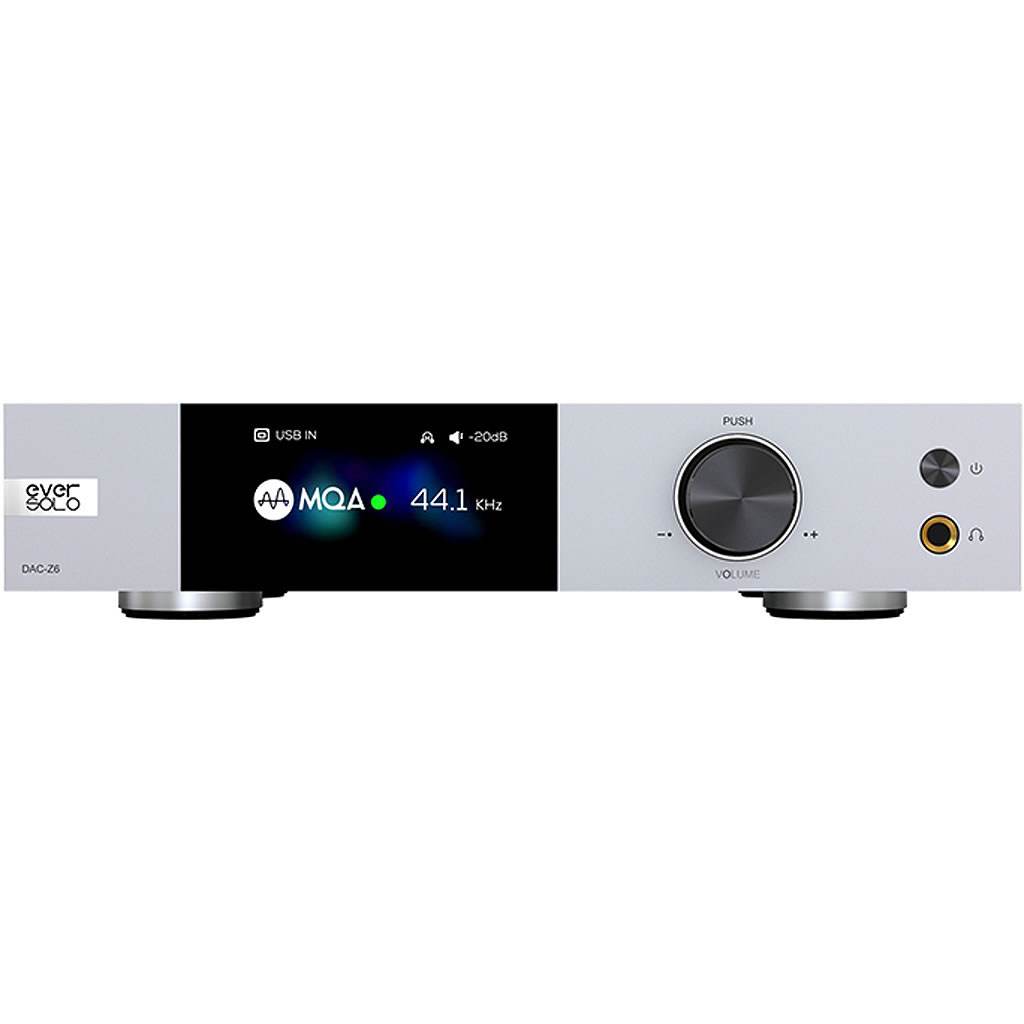

• 3-inch LCD screen, with diverse VU meter modes.
• Low ripple power supply to ensure a purer power source.
• Exclusive mobile phone controller APP for global control.

• Model: EverSolo DAC-Z6
• Display Screen: 3-inch LCD Screen
• Chassis: Aluminum alloy
• DAC: ES 9068*2
• Audio Processor: XMOS XU316
• OPA Chip: RT 6863*6
• Power Supply: Low noise switching power supply
• Bluetooth Audio Input: Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
• USB-B DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
• USB-C DAC Input: Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
• Optical Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
• Coaxial Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

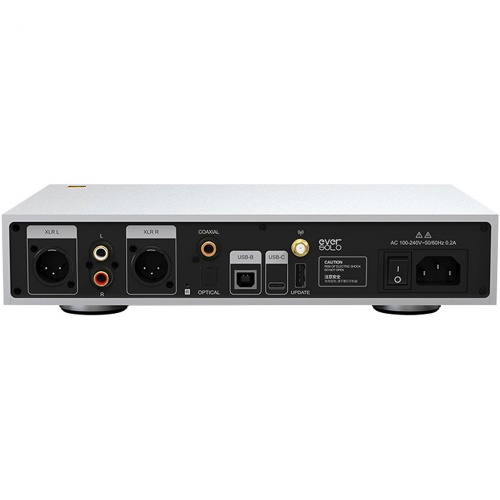

• Analog Audio Output: Preamp output: XLR (balanced), RCA;
• Headphone amp output: 6.35mm single-ended
• USB Port: USB2.0*1（only for firmware upgrade）
• Control Methods: Remote control, mobile APP control and knob control
• Headphone Impedance: 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
• XLR Audio Output: Output Level(Vrms)：4.1Vrms@0dBFS, THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）, THD+N@No-wt：0.000117%@, kHz（-118dB@1kHz）, Noise@No-wt ：<3uVrms, SNR)@No-wt：125@1kHz, frequency response：20Hz-20kHz(±0.15dB), CROSSTALK：-123dB@1kHz, DNR)@No-wt：125dB@1kHz
• RCA Audio Output: Output Level(Vrms)：2.1Vrms@0dBFS, THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz), THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz), Noise@No-wt ：<2.5uVrms, SNR)@No-wt：21dB@1kHz, frequency response：20Hz-20kHz(±0.15dB), CROSSTALK：-118dB@1kHz, DNR)@No-wt：121dB@1kHz
• Headphone (low gain mode): Output Level(Vrms)：1.2Vrms@0dBFS , Max Power: 45 mW@32Ω, THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz) , THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz), Noise@No-wt ：<3.5uVrms, SNR)@No-wt：114dB@1kHz, frequency response：20Hz-20kHz(±0.15dB), DNR)@No-wt：114dB@1kHz,
• Headphone (high gain mode): Output Level(Vrms)：2.8Vrms@0dBFS, Max Power： 26 mW@300Ω, THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz), THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz), Noise@No-wt ：<3.5uVrms, SNR)@No-wt：121dB@1kHz, frequency response：20Hz-20kHz(±0.15dB), DNR)@No-wt：121dB@1kHz
• Power Input: AC 110~240V 50/60Hz
• Rated Power: 9W
• Dimensions: 270mm(W) * 187mm(D)* 50mm(H)
• Packing List: Remote control*1, power cable*1, product manual*1
