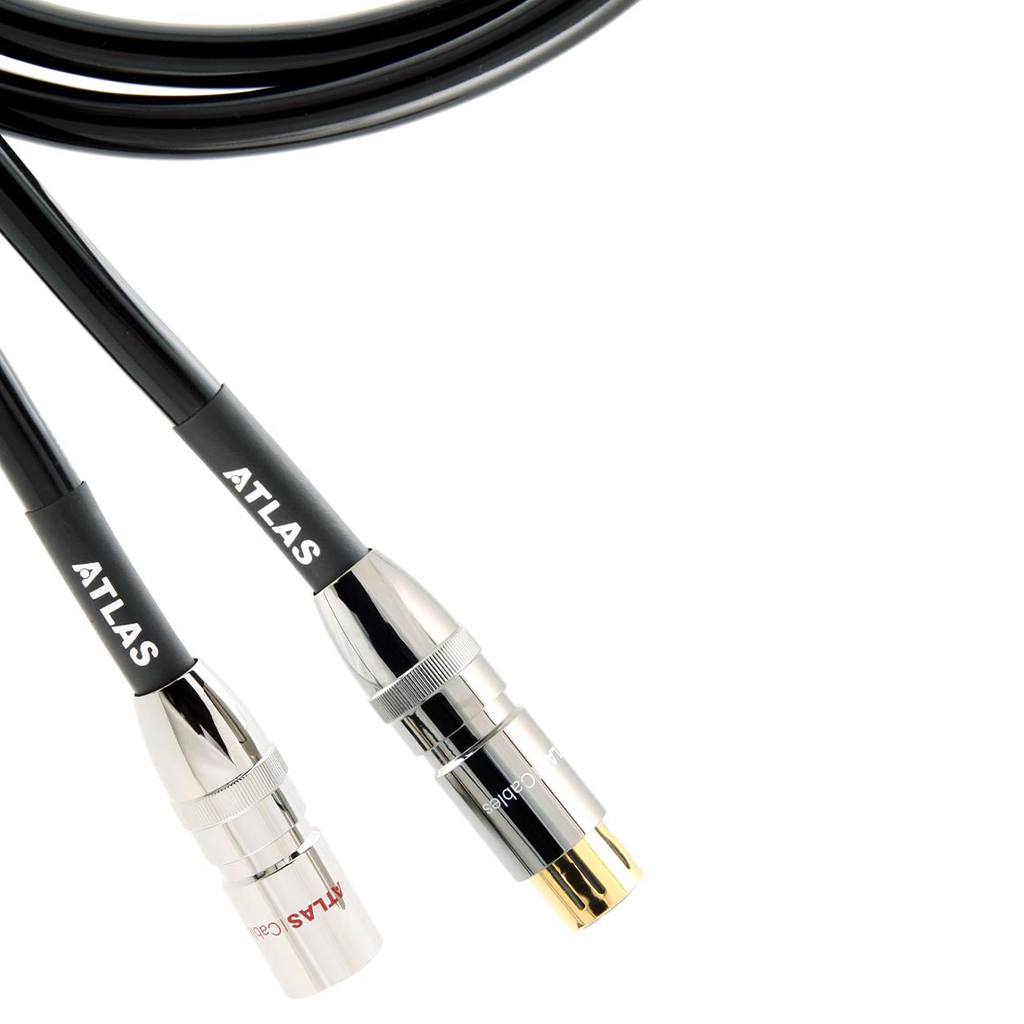

Atlas Hyper OCC XLR (3 pin) Analogue Interconnect Cable (Pair)

Atlas Hyper OCC XLR (3 pin) Analogue Interconnect Cable (Pair)
  Zoom
£825.00
(£687.50 Exc. VAT)



Delivery In 1-3 Days

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

  • Balanced connector with optimum audio performance via ‘trickle-down’ dd technology.
  • Four central multi-core conductors of high purity OCC
  • Excellent immunity to interference and noise
  • Low-mass solder-free XLR plugs
  • Lightweight aluminium alloy body with precision-fit OCC Connector
Atlas Cables
Secured by Thawte

Why buy from us?

Atlas Hyper OCC XLR (3 pin) Analogue Interconnect Cable (Pair)

Balanced connector with optimum audio performance via ‘trickle-down’ dd technology.

The Atlas Hyper dd is constructed with four central multi-core conductors of high purity OCC (Ohno Continuous Casting) copper encapsulated within a low-loss foamed Polyethylene dielectric, with excellent immunity to interference and noise, making it ideally suited to longer cable runs.

Atlas dd (‘dual drain’) system: normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.

The ‘dd’ configuration is based on a simplified version of the techniques we developed for our top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen.

The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen.

The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

Atlas use cold-weld terminations wherever possible, including our current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, the objective is to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.

NB. Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold.

Browse the Hyper Range!

The Hyper range includes DIN &XLR termination options, digital interconnects plus single and bi-wire speaker cables.

Shipping typically 1-3 days

Main Features:

  • Balanced connector with optimum audio performance via ‘trickle-down’ dd technology.
  • Four central multi-core conductors of high purity OCC
  • Excellent immunity to interference and noise
  • Low-mass solder-free XLR plugs
  • Lightweight aluminium alloy body with precision-fit OCC Connector
  • Construction: 4 core + screen
  • Material: 6n OCC Copper
  • Dielectric: PEF
  • Screen: OFC 94.2% – 252 strands, dual-drain
  • Capacitance: 71.54 pF/m
  • Inductance: 0.542 µH/m
  • Resistance: 0.0239 Ohms/m
  • VOP: 0.682
  • Outside Diameter: 10.0mm
