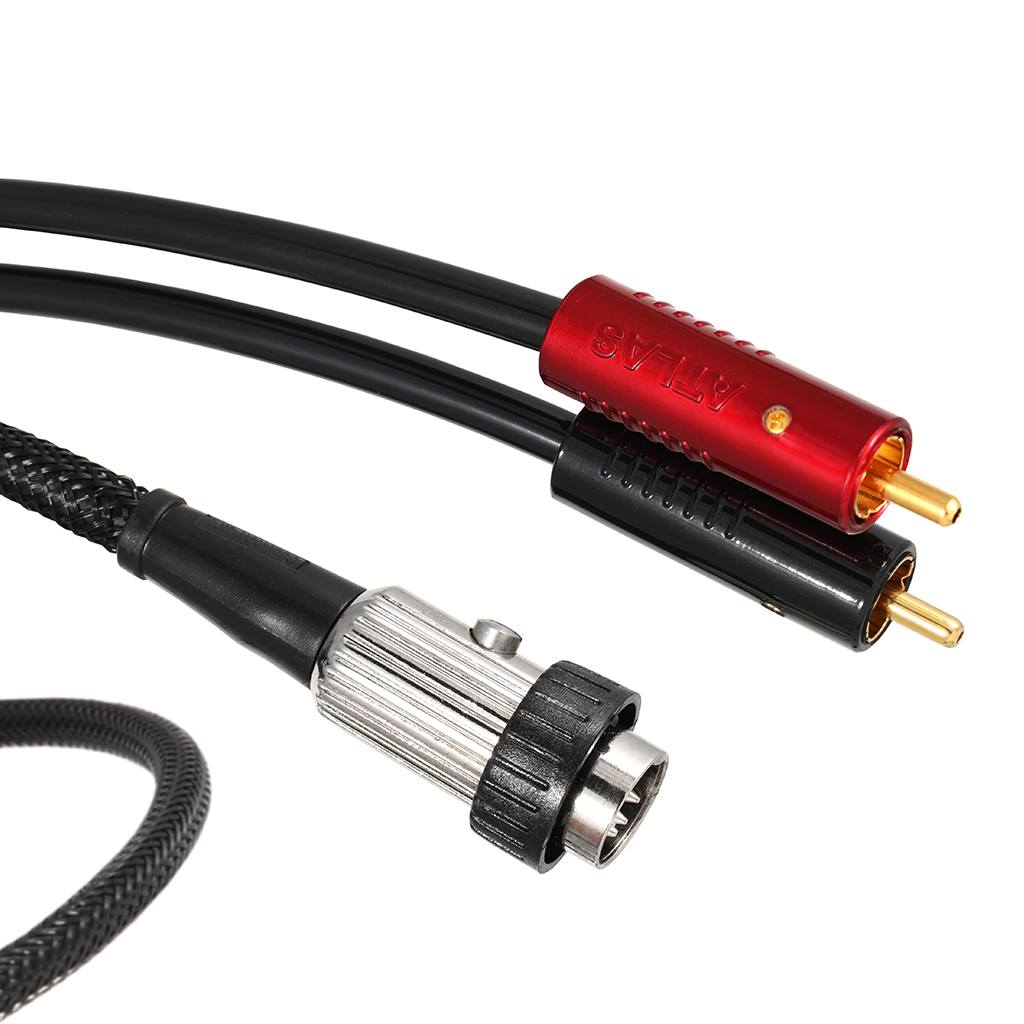

Atlas Hyper 5 Pin Din Achromatic RCA 1:2 Analogue Interconnect Cable

Atlas Hyper 5 Pin Din Achromatic RCA 1:2 Analogue Interconnect Cable
  Zoom
£385.00
(£320.83 Exc. VAT)




Delivery In 1-3 Days

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

  • ​Shielded four-core construction
  • DD (‘dual drain’) system to ensure excellent immunity to interference and noise.
  • Solid core OCC (Ohno Continuous Casting)
  • High-efficiency gas foamed Polyethylene dielectric
  • Wide-band, low-mass solder-free DIN & Ultra RCA connectors
Atlas Cables
Secured by Thawte

Why buy from us?

Atlas Hyper 5 Pin Din Achromatic RCA 1:2 Analogue Interconnect Cable

Based on the acclaimed Hyper Ultra RCA I/C, the Hyper DIN interconnect utilises a shielded four-core construction and the dd (‘dual drain’) system to ensure excellent immunity to interference and noise.

A high performance cable with a wide-band, neutral sound, designed to be a superior option for equipment utilising DIN socketry.

The conductor in the Hyper DIN cable is a solid core OCC (Ohno Continuous Casting) copper core surrounded by multiple bunch-stranded ‘satellite’ conductors of high purity OCC copper.

The ‘speed’ characteristic of analogue cables is determined primarily by the dielectric performance of the insulator applied around the conductor, Hyper’s conductors are encapsulated within a high-efficiency gas foamed Polyethylene dielectric, with excellent immunity to interference and noise.

Termination is via the wide-band, low-mass solder-free DIN & Ultra RCA connectors – the fewer discontinuities in the signal path, the lower the level of signal degradation and the better the performance.

Atlas dd (‘dual drain’) system: Normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination).

This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.
NB.

Atlas 180° DIN plugs are wired as follows by default:
Pin 2 = Ground; Pin 3 = Left, Pin 5 = Right. We also offer 4&5 pin variants suitable for Naim equipment.

Browse the Hyper Range!

The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.

Shipping typically 1-3 days
  • ​Shielded four-core construction
  • DD (‘dual drain’) system to ensure excellent immunity to interference and noise.
  • Wide-band, neutral sound
  • Solid core OCC (Ohno Continuous Casting)
  • High-efficiency gas foamed Polyethylene dielectric
  • Wide-band, low-mass solder-free DIN & Ultra RCA connectors
  • Construction: Twin twisted pair multicore
  • Material: 6n OCC Copper
  • Dielectric: PEF
  • Screen: OFC 94.2% – 252 strands
  • Capacitance: 71.54 pF/m
  • Inductance: 0.542 µH/m
  • Resistance: 0.0239 Ohms/m
  • VOP: 0.682
  • Outside Diameter: 10.0mm
