T+A MP 2000 R MKII Multi Source Player

T+A MP 2000 R MKII Multi Source Player

The MP 2000 R MKII is a genuine multi-talent. At first glance the casual observer may think it is just a classic CD player, but its true capabilities extend far beyond this. At its heart lies one of the world’s latest and most sophisti­cated digital – analogue converters (DAC). This converts PCM signals up to 384 kSps with the help of the quadruple converter – another in-house development – and even DSD files up to DSD 512.  The MP 2000 R is therefore able to exploit every digital music format in order to deliver music to the amplifier in the highest possible quality.

Our multi-source player houses a first-class CD mechanism; a high-performance digital tuner offering FM, FM-HD and DAB+ reproduction; a high-quality Bluetooth streaming module for receiving music from mobile devices, a streaming client with Internet radio and music services for connection to the home network via LAN and WLAN, USB Master Mode and HD streaming plus a digital connecting board with inputs for external sources (one USB device mode and four HD-S/PDIF). The wide range of connections allows external equipment to exploit the machine’s superb converter to the full.

Please note: the MP 2000 R is not a computer; it is a first-class audio device incorporating many supplementary functions designed to ensure that all modern digital sources can be reproduced to the highest possible standard of quality.

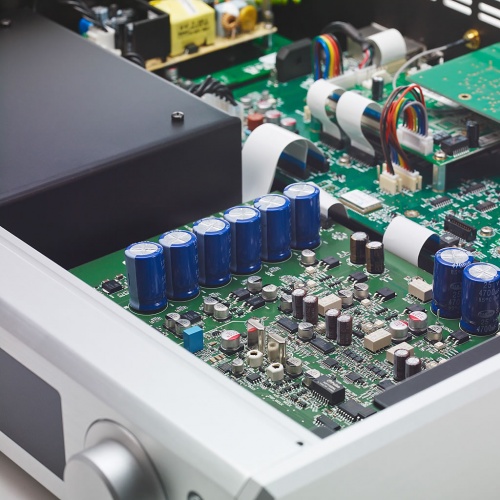

In pursuing this aim our engineers insisted on complete separation between the digital signal processing section and the analogue circuitry, and developed an ultra-modern, high-bandwidth analogue output stage which delivers the signal to the symmetrical (XLR) or asymmetrical (RCA) output sockets by the shortest possible path.

If you use the SRC 1 remote control, or the T+A MusicNavigator App, the whole system can be controlled via the MP 2000 R. The MP 2000 R delivers a stunning experience in sound reproduction, and finally exploits the full potential of high-resolution music.

Power Supply

The quality of any output stage is determined to a very great extent by the mains power supply as well as the circuit topology. Mains power supply units must be as stable and resilient as possible, to ensure that the voltage they generate does not collapse even when very high peaks are encountered. In conventional equipment this requires very large transformers, but the limited space available in the low-profile R-series machines spurred on our en­gineers to develop an ingenious alternative solution: a regulated high-frequency sine-wave mains power supply with generous reservoir capacity, capable of delivering up to 1200 Watts without problem. The mains power supply can deliver very large quantities of current extremely quickly, even when the gradient of the peak signals is steep. Our experience in building amplifiers over a period of thirty years has taught us the importance of the quality of audiophile modules for the final outcome in terms of sound quality, and that is why we choose our components with great care and then select them according to strict criteria, to ensure optimum characteristics for each specific application.

Connections

We use low-loss mica capacitors with silver electrodes, zero-induction resistors, precision low-noise audio resistors, and nickel-free gold- or rhodium plated terminals specially manufactured for T+A. Many of these components were developed for military applications, and therefore fulfil exacting requirements in terms of quality and durability. Another in-house development for the latest R-series is a completely new and very fast data bus for data exchange between the devices, which makes it possible to control a whole system with a single remote control handset. Alternatively, if the system includes an MP 2000 R, the equipment can be controlled using the T+A App for iOS or Android. Both amplifiers are equipped with a sophisticated protective circuit which is situated outside the signal path, and therefore cannot possibly have any adverse effect on sound quality. The protective circuit constantly compares the input signal before the output stage with the output signal, and instantaneously switches off the output relays if it detects the slightest deviation (clipping, distortion, etc.). The protective circuit is also triggered if overheating occurs, or if a short-circuit is present at the outputs. All the electronic circuitry for controlling the machines is recessed into the solid aluminum front profile, where the shielding effect is outstanding. The front panel features a bright, dimmable screen (VFD) and control knobs with variable lighting.

CD-Player

• Formats: CD/DA, CD-R, CD-RW, CD Text
• Frequency response + dynamic range: 2 Hz – 20 kHz/100 dB

Streaming Client

• Formats: MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC
• Data rates: PCM 32...192 kHz,16/24 Bit; MP3 up to 320 kBit, constant and variable Data rate
• Features: Gapless Playback for MP3 (Lame), WAV, FLAC
• T+A MusicNavigator App for iOS and Android
• Standards
• UPnP AV
• Services
• Tidal, Deezer, qobuz, Roon Ready
• (Subscription required)
• Interfaces: LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n

Digital Connecting Board

• S/PDIF digital inputs
• 2 high-quality co-ax and two opt. TOSLink; 32 kSps; 44.1kSps; 48 kSps; 88.2kSps; 96 kSps; 176.4kSps; 192 kSps; 16/24-bit
• USB (Device Mode): USB Class 2 mode; support for asynchronous data transfer
• PCM mode: 44.1kSps; 48 kSps; 88.2kSps; 96 kSps; 176.4kSps; 192 kSps; 352.8kSps; 384 kSps; 16/24/32-bit DSD mode: DSD 64; DSD 128; DSD 256; DSD 512
• USB (Master Mode)
• 2 inputs (1×front panel, 1×back panel) formats as Streaming Client formats

FM - Tuner

Reception standard

• FM, FM-HD

Frequency range

• 87.5 – 108 MHz (Europe/US Version)
• 76 – 90 MHz (Japan-Version)

Sensitivity

• Mono (26dB S/N) 0.9 uV,
• Stereo (46 dB S/N) 40 uV

Overload margin

• 103 dB uV

Total harmonic distortion

• 0,1 %

Signal:noise ratio, mono / stereo

• 72/62 dB

Stereo channel separation

• 50 dB

De-emphasis (Europe/US version)

• 50/75 us

Data services

• RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT)

DAB - Tuner

• Reception standard: DAB, DAB+
• Frequency range: 168 – 240 MHz (Band III)
• Sensitivity (BER = 10 – 4): 2,5 uV
• Overload margin: 103 dB uV

Bluetooth

• aptX® Bluetooth Audio transmission protocol
• A2DP (Audio) AVRCP 1.4 (Control), MP3, SBC

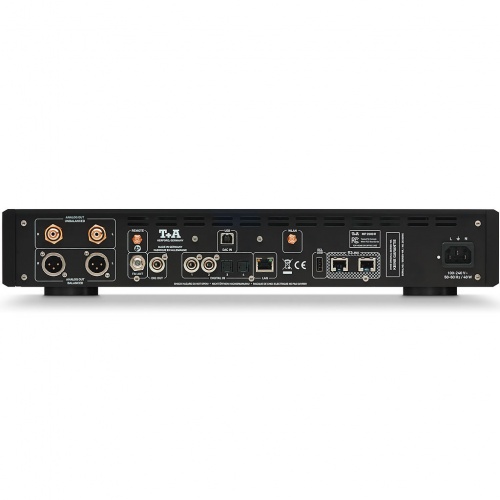

Connections

• Analogue outputs high level (RCA): 2,2 Veff / 50 Ohms
• Analogue outputs balanced (XLR): 4,4 Veff / 50 Ohms
• Digital outputs: 1 × coax, IEC 60958 (LPCM)

D/A-Converter

PCM

• Double differential quadruple converter with four D/A converters per channel,
• 32-bit sigma-delta, 352.8 kSps/384 kSps
• Up-sampling: freely programmable signal processor with four selectable oversampling algorithms. FIR short, FIR long, Bezier/IIR, Bezier

DSD

• Direct DSD signal path via T+A True 1-bit converter
• Frequency response PCM 44,1 kSps: 2 Hz – 20 kHz
• Frequency response PCM 48 kSps / DSD 64: 2 Hz – 22 kHz / 2 Hz – 44 kHz
• Frequency response PCM 96 kSps / DSD 128:  2 Hz – 40 kHz / 2 Hz – 60 kHz
• Frequency response PCM 192 kSps / DSD 256: 2 Hz – 80 kHz / 2 Hz – 80 kHz
• Frequency response PCM 384 kSps / DSD 512 : 2 Hz – 100 kHz / 2 Hz – 100 kHz

Analogue filter

• Phase-linear filter with automatic bandwidth switching 60…120kHz (according to sample rate)
• Total harmonic distortion: < 0,001 %
• Signal:noise ratio: 110 dB
• Channel separation: 110 dB

Mains / Accessories / Dimensions

Control interface

• R2-Link

Remote control

• SRC 1, MusicNavigator App

Mains connection

• 100 – 240 V, 50 – 60 Hz
• Power consumption max: 40 Watts
• ECO-Standby: 0,4 Watt
• Auto power off function
• yes (after 90 minutes without audio signal)
• Optional Accessories
• Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Audio Triax (Carbon) | IP-Steuerung

Dimensions (H x W x D)

• 8,2 × 46 × 40 cm
• Weight: 8 kg

Finishes

• Silver anodised aluminium (43), black anodised aluminium (42), brushed
• Technical modifications reserved
