SPL Elector Analog Preamplifier

SPL Elector Analog Preamplifier
  Zoom
SPL Elector Analog PreamplifierSPL Elector Analog PreamplifierSPL Elector Analog Preamplifier
£2,299.00
(£1,915.83 Exc. VAT)



Available

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

Free standard UK delivery
  • Preamp & Direct Out
  • Tape Monitor Feature
  • Volume Remote Control
  • 3 x XLR & RCA Connectors
  • Superior VOLTAiR Technology
SPL
Secured by Thawte

Why buy from us?

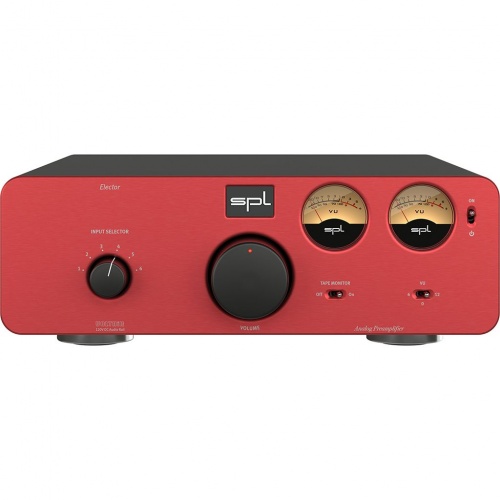

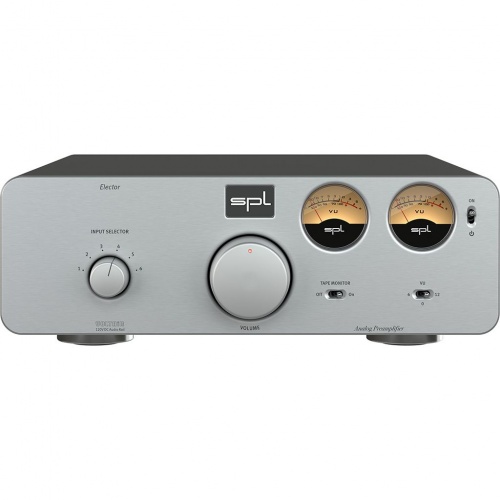

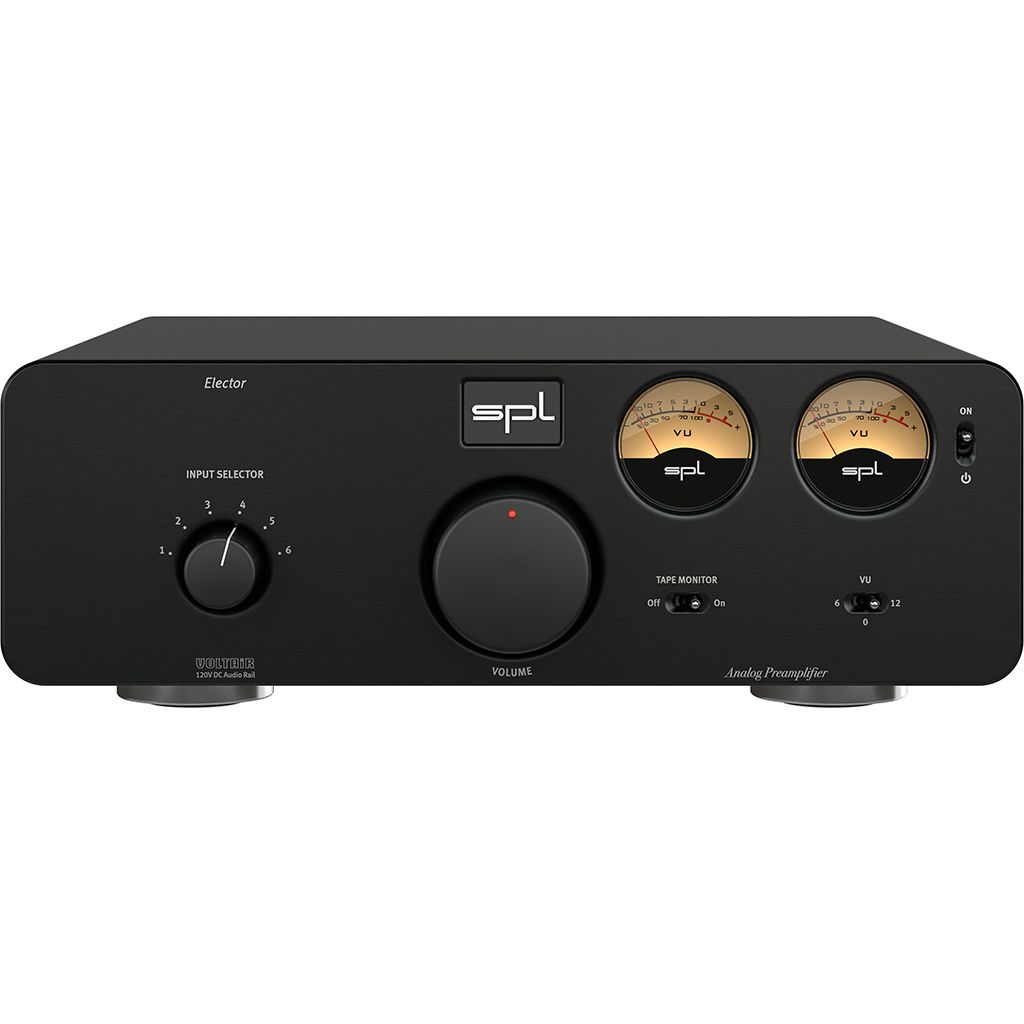

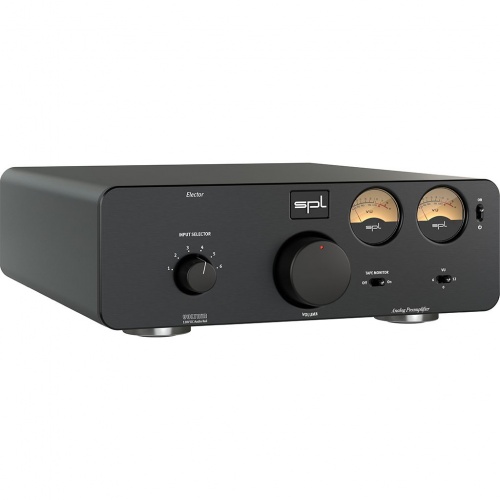

SPL Elector Analog Preamplifier

The analog purist.

This is the preamplifier for the lover of pure analog technology. With motorised volume control, retro-look-VU-meter, tape monitor and the all superior VOLTAiR technology the Elector brings analog sources to new life.

Volume Remote Control

The volume can be remote controlled with any infrared remote control, that the Elector simply learns.

To do this, press the IR programming button and then the buttons for louder and quieter.

Source of joy

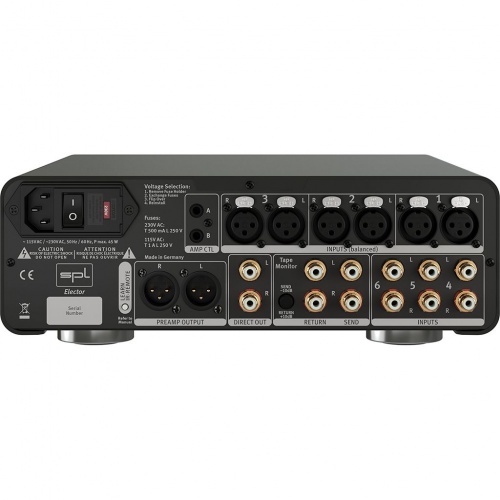

Up to six (6 !) analog stereo sources can be connected to the Elector. The Elector also offers three pairs of balanced inputs with XLR connectors and three pairs of standard inputs with gold-plated RCA connectors.

Preamp & Direct Out

On the output side, power amplifiers or active loudspeakers can be connected to the preamp output sockets using XLRs.

The Direct Out via RCA picks up the output signal before the volume control and thus offers the possibility to connect a headphone amplifier.

AMP CTL

Practical are the AMP CTL sockets to which power amplifiers with 12 V trigger inputs can be connected in order to remotely switch them on and off together with the Director Mk2.

Shipping typically 2-3 days

Main Features:

  • Preamp & Direct Out
  • Tape Monitor Feature
  • Volume Remote Control
  • 3 x XLR & RCA Connectors
  • Superior VOLTAiR Technology

Analog Inputs & Output; XLR (balanced) and RCA:

  • Maximum input & output gain: 32.5 dBu
  • Input impedance (RCA): 47 kΩ
  • Input impedance (XLR): 20 kΩ
  • Output impedance: 75 Ω
  • Common mode rejection (XLR): -82 dBu
  • Frequency range (-3 dB): 4 Hz – 300 kHz
  • Crosstalk (1 kHz): -108 dBu
  • THD (0 dBu, 1 kHz): 0.000992 %
  • Noise (A-weighted): -102.5 dBu
  • Dynamic range: 135 dB

Internal Linear Power Supply with Shielded Toroidal Transformer:

  • Operating voltage for analog audio: +/- 60 V
  • Operating voltage for relays and LEDs: + 12 V
  • Operating voltage for DAC768: + 7 V, +3.3 V

Mains Power Supply:

  • Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V: T 500 mA
  • Fuse for 115 V: T 1 A
  • Power consumption: max. 40 VA
  • Stand-by power consumption: < 0,3 W


Dimensions & Weight:

  • W x H x D (width x height incl. feet x depth): 278 x 100 x 330 mm / 11 x 4 x 13 inch
  • Unit weight: 4.25 kg / 9.37 lbs
  • Shipping weight (incl. packaging): 5.4 kg / 11.9 lbs
