miniDSP UMIK-1 USB Measurement Microphone

miniDSP UMIK-1 USB Measurement Microphone
  Zoom
miniDSP UMIK-1 USB Measurement MicrophoneminiDSP UMIK-1 USB Measurement MicrophoneminiDSP UMIK-1 USB Measurement Microphone
£129.00
(£107.50 Exc. VAT)


In Stock

U.K. DPD Local

Availability

Enquire now to purchase
01892 532 995

  • Windows/Mac/Linux
  • All measurement software
  • Special features such as calibrated SPL measurement
  • Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded

Additional Information

MiniDSP UMIK-1 Product Sheet
miniDSP
Secured by Thawte

Why buy from us?

miniDSP UMIK-1 USB Measurement Microphone

USB Measurement calibrated microphone for a plug & play measurement of your system.

The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on.

Forget about driver installation, OS compatibility and un-calibrated mics. The UMIK-1 is a USB Audio Class 1 device automatically recognized by all Operating Systems (Windows/Mac) and iPad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement.

Combined with our recommended acoustic measurement software, it is the perfect match for a plug & play measurement system.

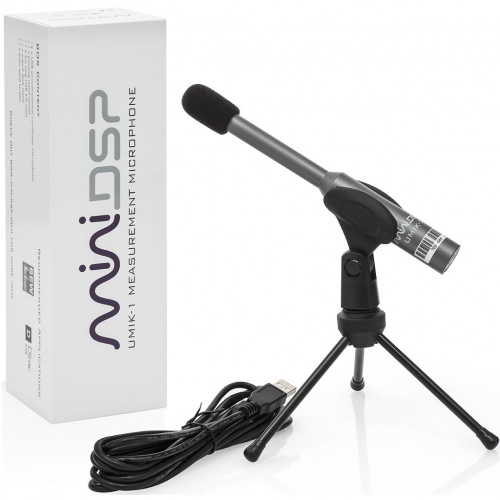

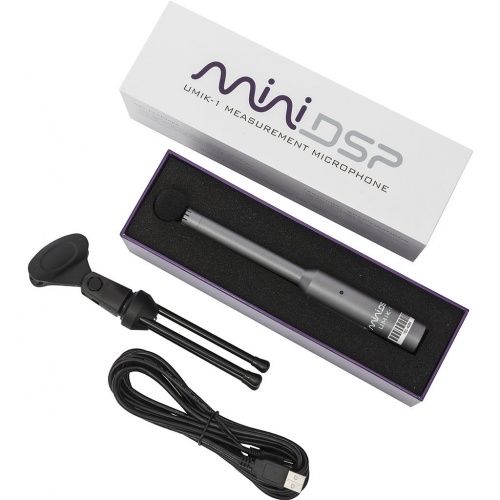

What's in the box?

  • 1 x UMIK-1 microphone
  • 1 x shielded USB cable (2m)
  • 1 x mini Tripod
  • 1 x foam windscreen
Shipping typically 1-2 days
  • Windows/Mac/Linux
  • All measurement software
  • Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software
  • Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded
  • USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux
Capsule Type & Polar pattern:
  • 6mm electret, Omni-Directional
Frequency response:
  • 20 Hz - 20kHz
USB Audio Class:
  • USB Audio class 1.0
  • Driverless interface for Windows, Mac & Linux
Connector:
  • USB Type C connector (2m cable length)
  • Unique microphone calibration
Calibration File:
  • .txt file referenced to the Serial Number Includes on axis Frequency Amplitude / Sensitivity drift
Resolution & Sample rate:
  • 24bit ADC @ 48kHz
  • Max SPL for 1 % TDH @ 1kHz:
  • 133 dB SPL @OdB gain setting
Output noise level at max IGPA:
  • -74dBFS
Weight:
  • 120gm for microphone, 600gm complete kit with accessories
Power:
  • USB Powered (5V) - Blue LED indicates unit under Power
Clamp thread size:
  • 3/8"-16
Win/Mac Compatible:
  • Yes
