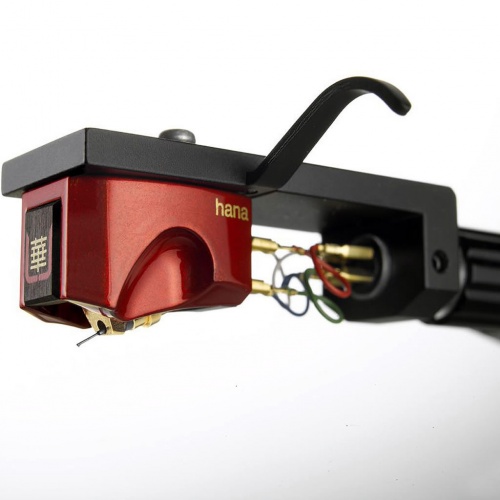

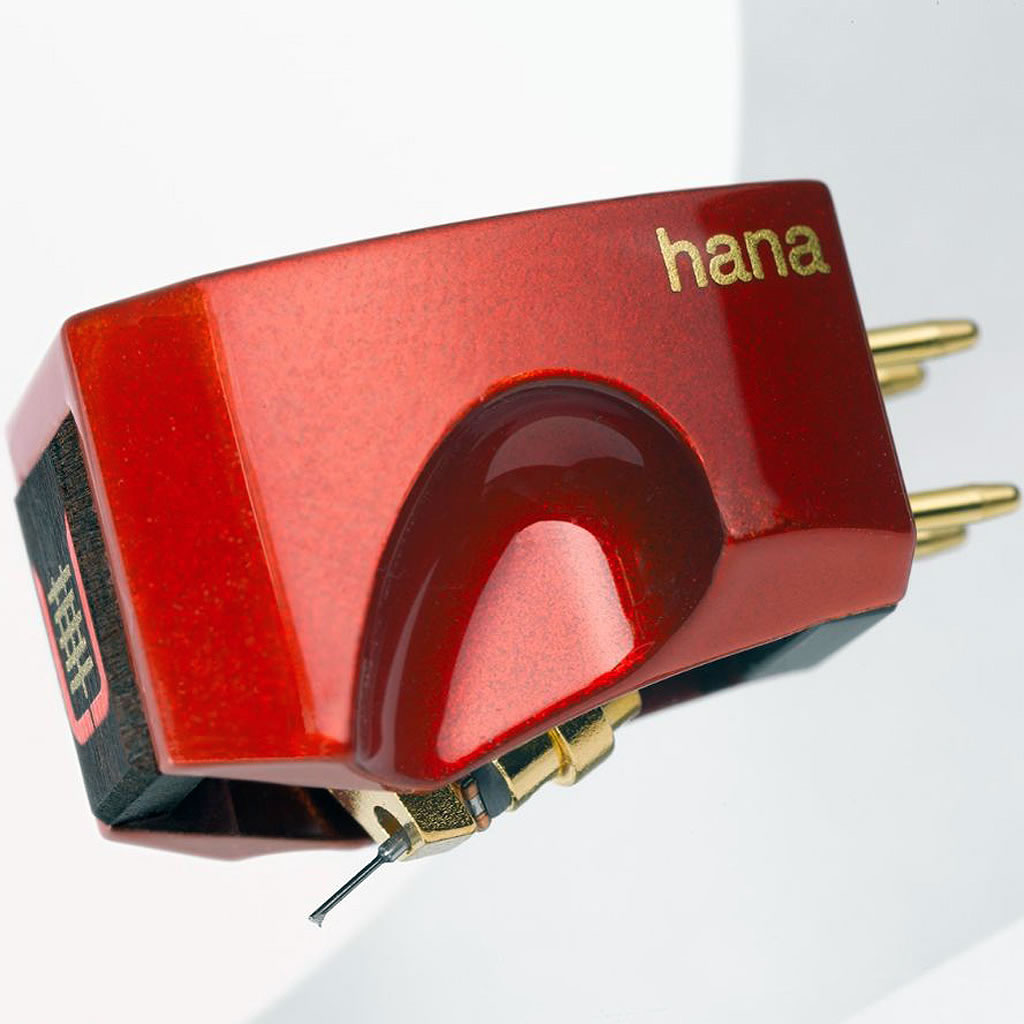

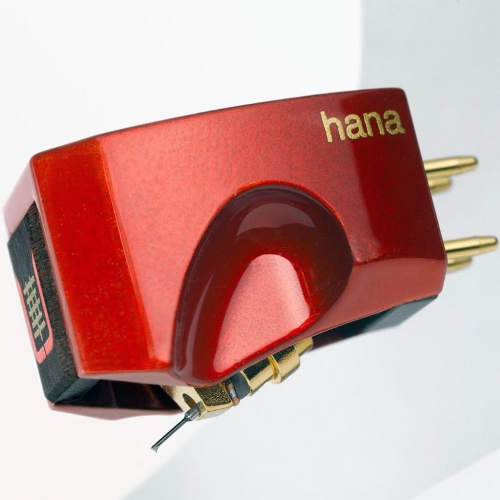

Hana Umami Red Moving Coil Cartridge

Hana Umami Red Moving Coil Cartridge
  Zoom
 Hana Umami Red Moving Coil CartridgeHana Umami Red Moving Coil Cartridge
£3,399.00
(£2,832.50 Exc. VAT)


Available

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

Free standard UK delivery
  • Auricle cartridge body
  • Urushi lacquer
  • Microline stylus
  • Boron cantilever
  • Moving coil generator
Hana
Secured by Thawte

Why buy from us?

Hana Umami Red Moving Coil Cartridge

Umami Sound means Wonderful Taste in Music

The HANA-Umami Red hand-built MC cartridge embodies Umami, officially coined in 1908 by Japanese chemist Kikunae Ikeda-san as a very pleasing or delicious flavor on the palette, a synergistic effect resulting in higher taste intensity. Hana’s Master cartridge designer Maseo Okada-san applies this concept as he combines brilliant materials and classic Japanese techniques with modern audio engineering to create his HANA-Umami Red MC cartridge.

The cryogenically treated MC generator features a samarium/cobalt magnet with a pure-iron square plate armature, hand-wound with high purity 30-micron copper wire for an internal impedance of 6Ω and 0.4mV output. A Nude Microline stylus is bonded to a solid Boron cantilever for tracing the most delicate musical nuances from the LP.

The HANA-Umami Red exclusive Auricle™ body design, mimics the shape of the human outer ear to rigidly support the “Open Air” Moving Coil generator. It is machined from A7075 Duralumin with a multi-layered Urushi lacquer finish originating from the Japanese Makie-artistic tradition, and incorporates an Ebony Wood inlay, tapped mounting holes, and stylus guard.

All the major parts of the HANA-Umami Red are manufactured in house by Excel Sound with its highly trained craftsmen skillfully hand assembling each cartridge. Master designer Okada-san brings over 50 years of experience to this design, applying the Umami concept of synergy with the HANA-Umami Red.

  • The Umami Red offers 0.4mv/1KHz output
  • 2 year guarantee and a ‘new for old or damaged’ replacement service
Shipping typically 2-3 days
Model: Umami Red (UR)
Body Material: Duralumin (A7075), Ebony Wood
Body Finish: Gloss Urushi Lacquer/ Red
Cantilever: Boron
Stylus: Microline Nude Diamond
Armature Material: Permalloy
Armature Shape: Square
Parts Material: Pure Iron
Magnet: Samarium Colbalt
Terminal Plate: PEEK (Polyether Ether Ketone)
Terminal Pin: 24K Gold Plated
Coil Impedance: 6Ω/1kHz
Coil Output Level: 0.4mV/1kHz
Coil Wire Material: High Purity Copper
Terminating: Impedance >60Ω
Cryo-genic treatment: Yes
Frequency Response: 15~50,000Hz
Output Balance: 0.5dB/1kHz
Channel Separation: >30dB/1kHz
Tracking Force: Weight 2 gr.
Trackability: 70μm/2gr
Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz)
Dynamic Compliance: 16 x 10(-6) cm/dyne (100Hz)
Cartridge Weight: 10.5 gr
