Audio Technica VM740ML High-End Dual Moving Magnet Stereo Cartridge

Audio Technica VM740ML High-End Dual Moving Magnet Stereo Cartridge
  Zoom
£289.99
(£241.66 Exc. VAT)


Call: 01892 532995

U.K. DPD Local

Availability

Enquire now to purchase
01892 532 995

  • Microlinear profile diamond stylus
  • VM type dual magnet system
  • Para-toroidal coils improve generating efficiency
  • Aluminium tapered cantilever
  • Centre shield plate between stereo channels
Audio-Technica
Secured by Thawte

Why buy from us?

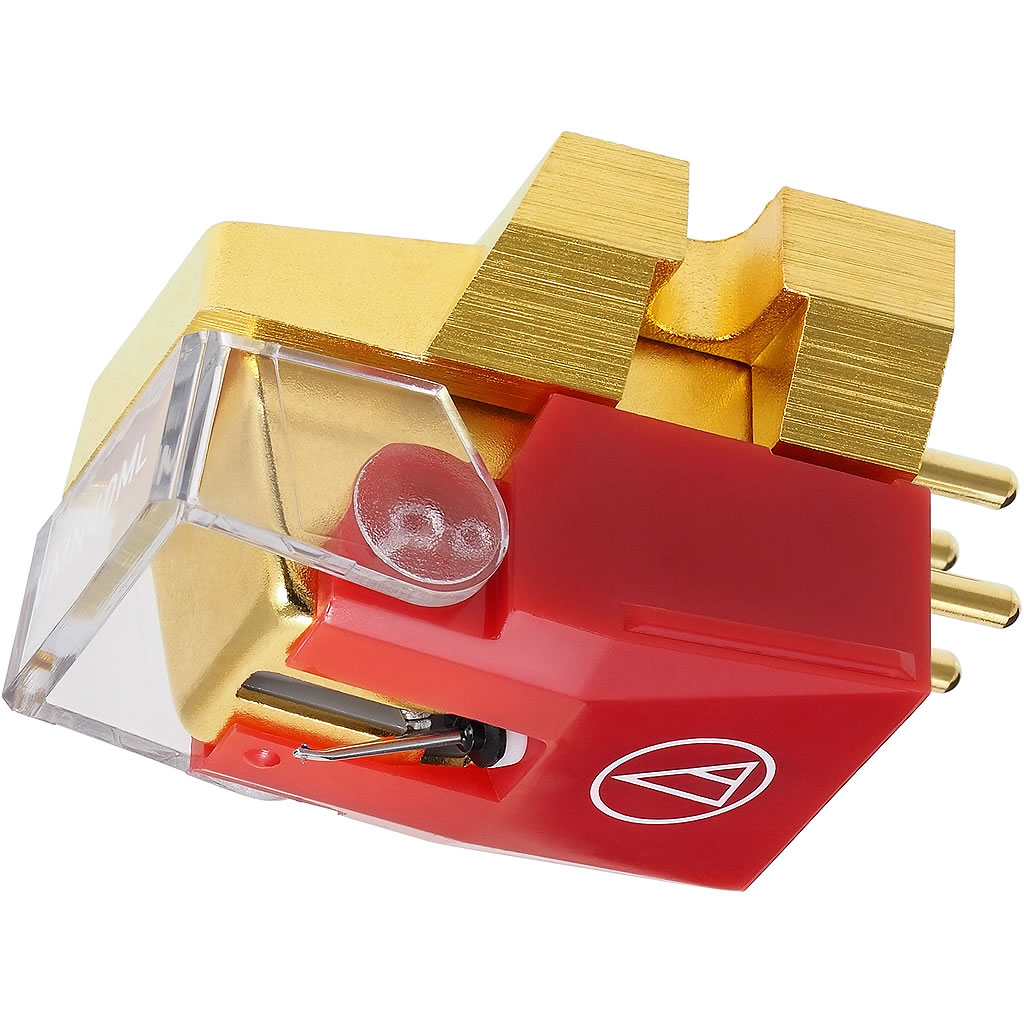

Audio Technica VM740ML High-End Dual Moving Magnet Stereo Cartridge with Microlinear Stylus

High-end model featuring a Microlinear stylus in an aluminium die-cast alloy body. In addition to outstanding high-frequency reproduction, this model enables clear sound image localisation.

• Aluminium tapered cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield

Shipping typically 2-3 days

• Microlinear profile diamond stylus offers high frequency response with less wear & distortion than elliptical or conventional linear contact styli
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield

Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

700 Series

Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli.

Microlinear Stylus

Microlinear profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli.

Type: VM Type
Mounting: 1/2” centres
Frequency Response: 20 - 27,000Hz
Channel Separation: 28dB (1kHz)
Output Channel Balance: 1.0dB (1kHz)
Output Voltage: 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle: 23˚
Vertical Tracking Force Range: 1.8 – 2.2g (2.0g standard)
Stylus Shape: Microlinear
Stylus Size: 0.12 x 2.2 mil
Stylus Construction: Nude Square Shank
Cantilever: Aluminium Tapered Pipe
Coil Impedance: 2,700Ω (1kHz)
Static Compliance: 40 x 10-6 cm/dyne
Dynamic Compliance: 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance: 47,000Ω
Recommended Load Capacitance: 100 – 200pF
Weight: 8.0g
Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus: VMN40ML
Accessories Included: Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
