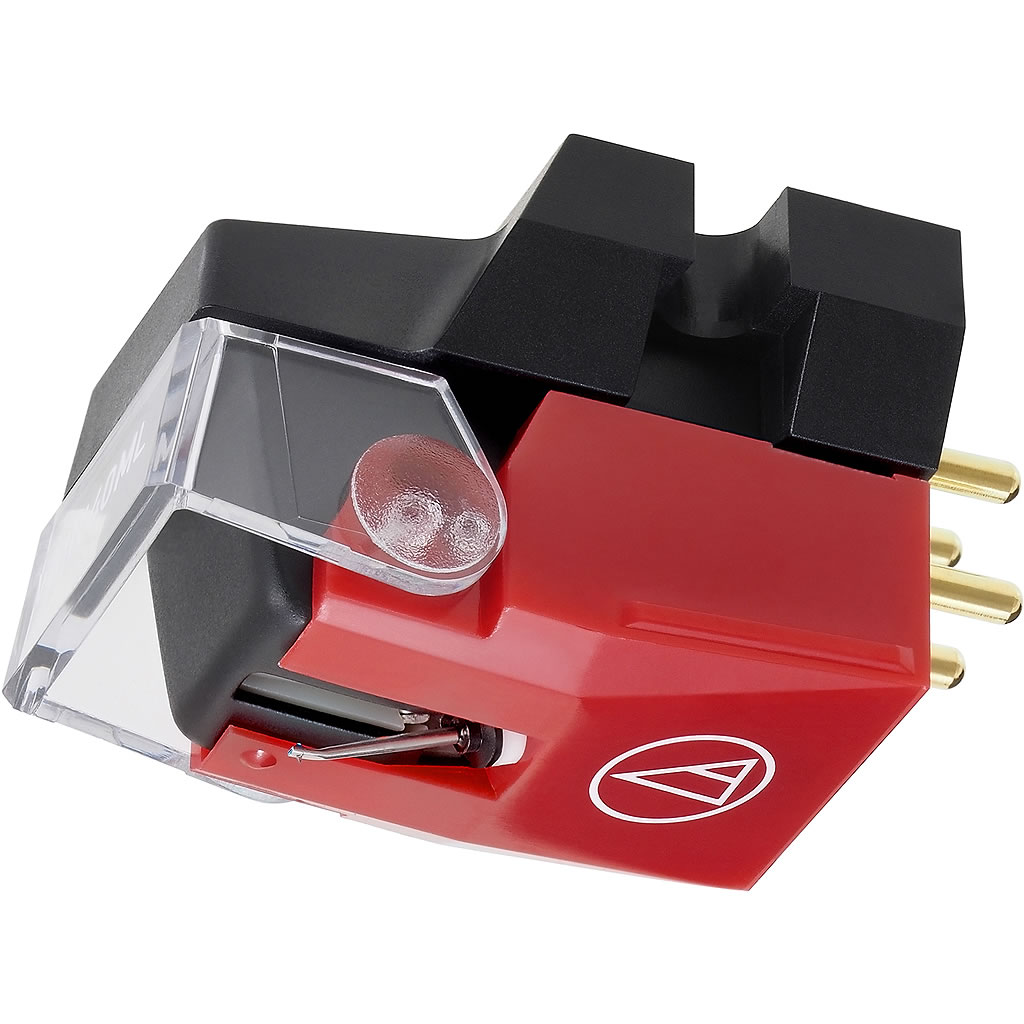

Audio Technica VM540ML Dual Moving Magnet Stereo Cartridge

Audio Technica VM540ML Dual Moving Magnet Stereo Cartridge
  Zoom
£235.00
(£195.83 Exc. VAT)


In Stock

Royal Mail Special Delivery

Availability

Enquire now to purchase
01892 532 995

Free standard UK delivery
  • Microlinear profile diamond stylus
  • VM type dual magnet system
  • Para-toroidal coils improve generating efficiency
  • Aluminium tapered cantilever
  • Centre shield plate between stereo channels
Secured by Thawte

Why buy from us?

Audio Technica VM540ML Dual Moving Magnet Stereo Cartridge with Microlinear Stylus

Standard model with a Microlinear stylus. Distortion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn.

• Aluminium tapered cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Durable low resonance polymer housing

Shipping typically 2-3 days

• Microlinear profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Durable low resonance polymer housing

Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

500 Series

Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 500 series.

Microlinear Stylus

Microlinear profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventiona linear contact styli.

  • Type: VM Type
  • Mounting: 1/2” centres
  • Frequency Response: 20 - 27,000Hz
  • Channel Separation: 28dB (1kHz)
  • Output Channel Balance: 1.0dB (1kHz)
  • Output Voltage: 4.0mV (1kHz, 5cm/sec.)
  • Vertical Tracking Angle: 23˚
  • Vertical Tracking Force Range: 1.8 – 2.2g (2.0g standard)
  • Stylus Shape: Microlinear
  • Stylus Size: 0.12 x 2.2 mil
  • Stylus Construction: Nude Square Shank
  • Cantilever: Aluminium Tapered Pipe
  • Coil Impedance: 2,700Ω (1kHz)
  • Static Compliance: 40 x 10-6 cm/dyne
  • Dynamic Compliance: 10 x 10-6 cm/dyne (100Hz)
  • Recommended Load Impedance: 47,000Ω
  • Recommended Load Capacitance: 100 – 200pF
  • Weight: 6.4g
  • Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
  • Replacement Stylus: VMN40ML
  • Accessories Included: Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
