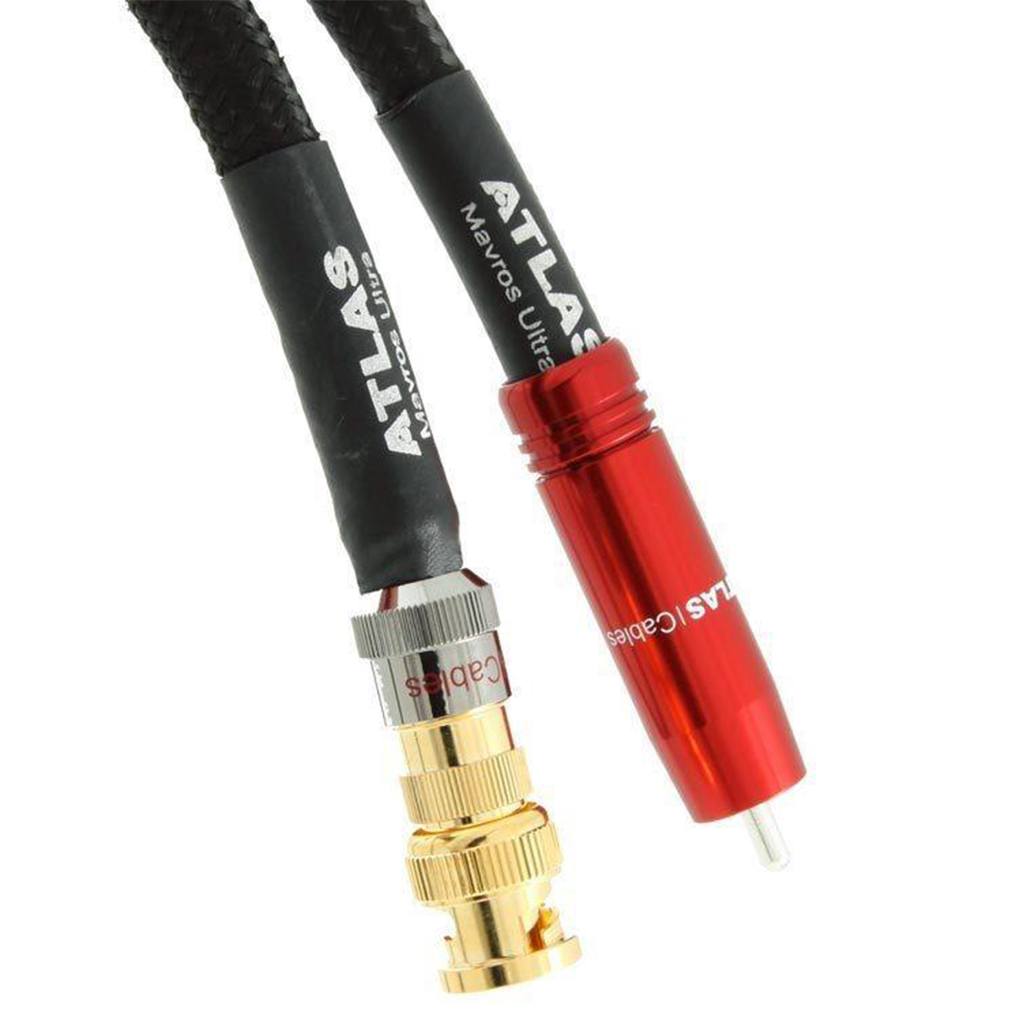

Atlas Mavros Ultra RCA - BNC S/PDIF Digital Interconnect Cable

Atlas Mavros Ultra RCA - BNC S/PDIF Digital Interconnect Cable
  Zoom
£511.00
(£425.83 Exc. VAT)




Delivery In 1-3 Days

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

  • A true reference class 75 Ohm digital cable.
  • Microporous PTFE (Teflon™) dielectric insulation
  • Extremely precise transmission and termination standards
  •  Co-axial double shielding layers
  • Total 360° screening against noise and signal loss caused by RFI
Atlas Cables
Secured by Thawte

Why buy from us?

Atlas Mavros Ultra RCA - BNC S/PDIF Digital Interconnect Cable

A true reference class 75 Ohm digital cable.

The Mavros BNC cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects.

The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted.

The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn.

The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

With a termination impedance of almost exactly 75 Ohms at 1 MHz and a low conductor-to-conductor capacitance of around 50 pF per meter the Mavros BNC interconnect perfectly matches consumer digital audio equipment to ensure error-free transmission of high speed digital signals. The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.

Shipping typically 1-3 days

Main Features:

  • A true reference class 75 Ohm digital cable.
  • Microporous PTFE (Teflon™) dielectric insulation
  • Extremely precise transmission and termination standards
  • Monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE
  • 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability
  • Co-axial double shielding layers
  • OFC (Oxygen Free Copper) braiding
  • Protected by a PVC jacket damped with cotton yarn
  • Unique dd system connects the screen effectively to the cable return/plug interface
  • The cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen
  • Total 360° screening against noise and signal loss caused by RFI
  • Construction: Co-ax
  • Material: OCC Copper
  • Dielectric: Microporous PTFE (Teflon™)
  • Screen: Braid OFC with Al Mylar,™ 100%
  • Capacitance: 54.50 pF/m
  • Inductance: 0.462 µH/m
  • Resistance: 0.03788 Ohms/m
  • Impedance: 76.1 Ohm at (1MHz)
  • Outside Diameter: 9.5mm
