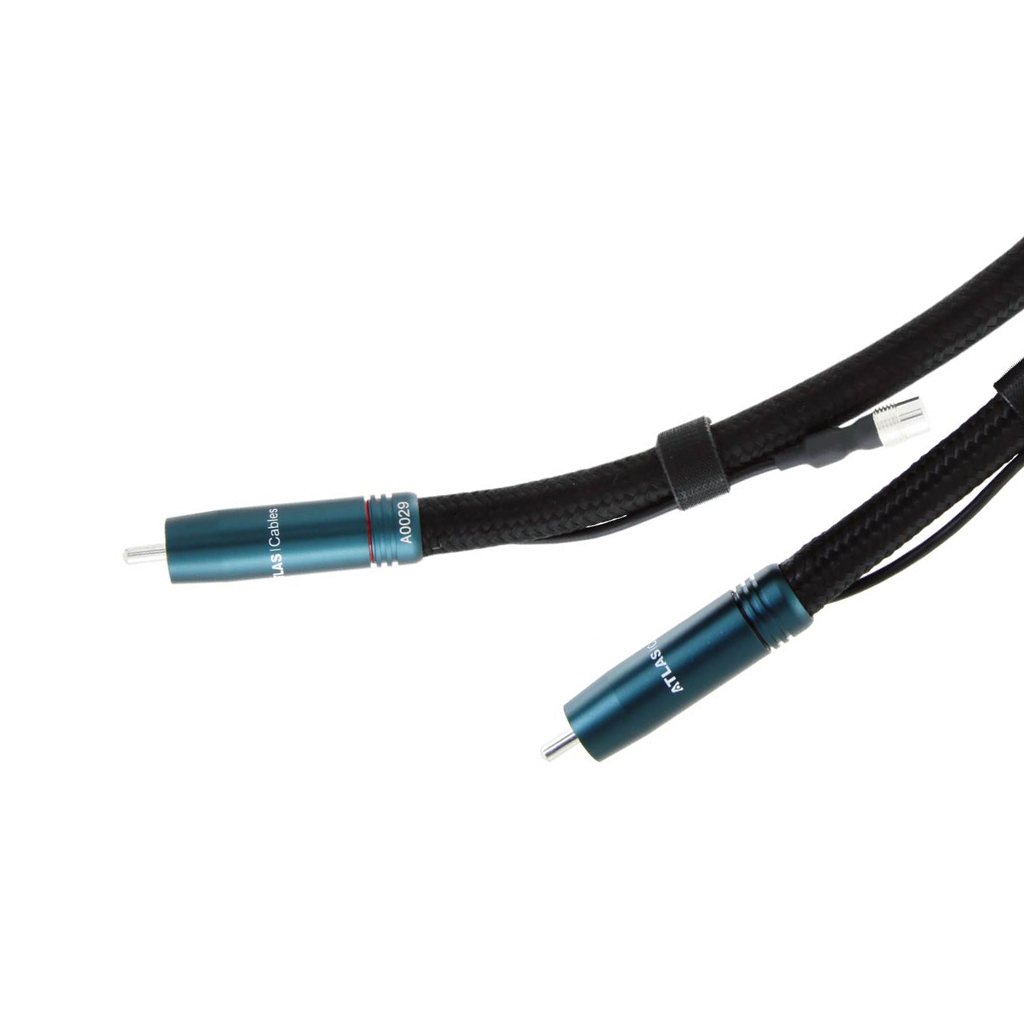

Atlas Mavros Grun Ultra RCA Analogue Interconnect Cable (Pair)
The Mavros Ultra RCA has been designed from the ground up to complement the performance of ‘high-end’ audio systems by achieving maximum signal transfer with minimum susceptibility to spurious interference.
The Mavros Ultra RCA uses the very highest quality ‘6N’ (99.99997% purity) copper manufactured using the OCC ‘Ohno Continuous Cast’ technique.
In the manufacture of Mavros, the copper’s conductivity is maximised by ensuring that there is one grain in approximately 125 metres of conductor, allowing the signal a continuous unbroken path –in practice, the signal has a faster, cleaner and more direct path to follow.
The cable consists of a pair of conductors, each made up from six bundles of 12 multi-conductor wires, plus a thicker centre wire. This in turn is covered by a continuous copper/Mylar™ electrostatic screen with copper shielding braid, ensuring minimal susceptibility to RF interference and noise.
Theoretically, the best dielectric (insulation layer) is air. Conventional dielectric (insulation) materials impose their own signature distortion and loss on the signal.
The technique uses a microporous PTFE (Teflon™) tape, which is wound around the core conductors, then covered again and stabilised using a protective FPE (Flexible PolyEthylene) dielectric.
This process maintains the required conductor geometry, and bestows greater manufacturing consistency.

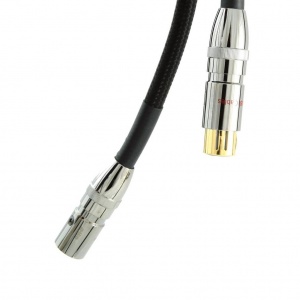

Termination is with the low-mass, high bandwidth, cold-weld Ultra RCA or XLR connectors, both of which have minimal effect on the integrity of the signal.
