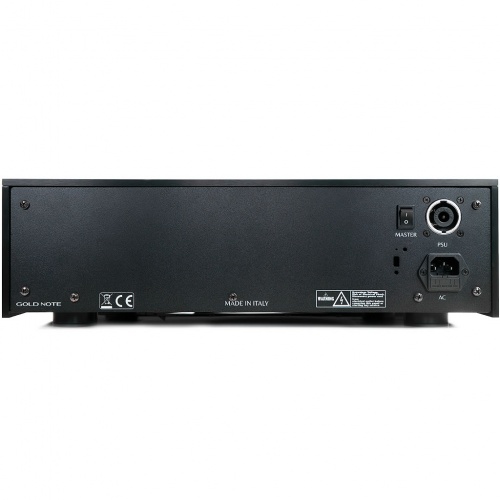

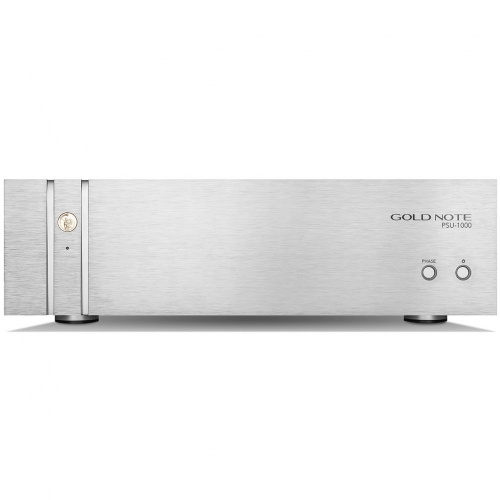

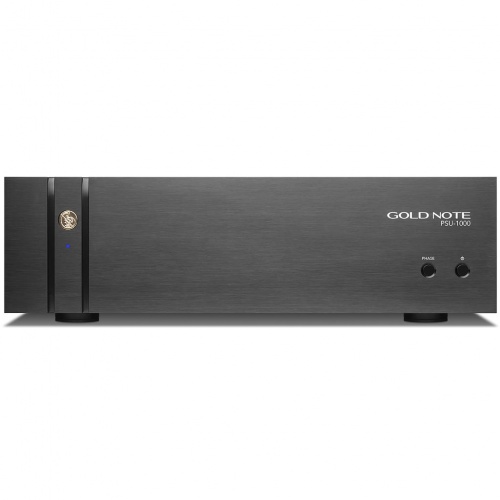

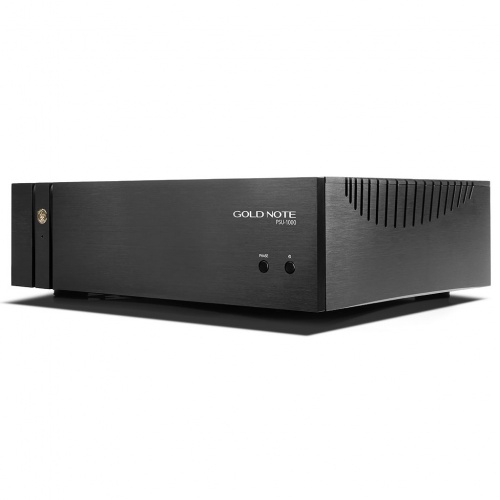

Gold Note PSU-1000 Power Supply

Goldnote PSU-1000 External Inductive Power Supply

An external power supply that guarantees ideal operating conditions for the series 1000 electronics.

These special external power supplies have been developed to drive all 1000 series units, except the amplifiers, to achieve the best resolution. Their pure energy enhances noise reduction, greater dynamic, better resolution and finer details guaranteeing the best realism and musicality.

External Inductive Power Supply for Series 1000 HiFi-Electronics

PSU-1250 & PSU-1000 have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.

The special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system. With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.

Dedicated to CD-1000 MkII, DS-1000 MkII, P-1000 MkII and PH-1000, they feature a 6 rail power supply with 6 ultra-low noise voltage regulators.

Dual Choke Design

Our proprietary technology removes the impurity and the interferences that inevitably trouble the AC power system.

5 Transformers

3 are dedicated to the power supply, 1 to the inductive filter, 1 for the galvanic insulation of the audio stage.

Modular Design

PSU-1250 and PSU-1000 can be used with: CD-1000, DS-1000, P-1000 and PH-1000.

• PSU-1250/1000: Seven rail audio grade power supply, Seven low noise voltage regulator, +12V, +8V, +5V for logic, +/- 12V for analog with inductive noise remover, +/- 28V for analog with inductive noise remover (only with P-1000)
• MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
• LINE NOISE REJECTION: >80dB
• COMMON MODE NOISE REJECTION: >80dB
• ABSOLUTE PHASE CONTROL: selectable from front panel
• FULL POWER RESPONSE TIME: <2,5µsec
• TOTAL POWER RESERVE: PSU-1000: 1000W, PSU-1250: 1250W,
• POWER ABSORPTION: 100W
• DYNAMIC POWER: PSU-1000: >200W, PSU-1250: >300W
• STAND BY POWER: <1W
• POWER SUPPLY: 100-120V / 220-240V with automatic selection; 50/60Hz
• DIMENSIONS: 425mm W 135mm H 360mm D
• WEIGHT: PSU-1000: 20Kg net – 25Kg boxed, PSU-1250: 21Kg net – 27Kg boxed
• FINISHES: Brushed Aluminium Black, Gold or Silver
