Graham Slee Revelation Phono Stage

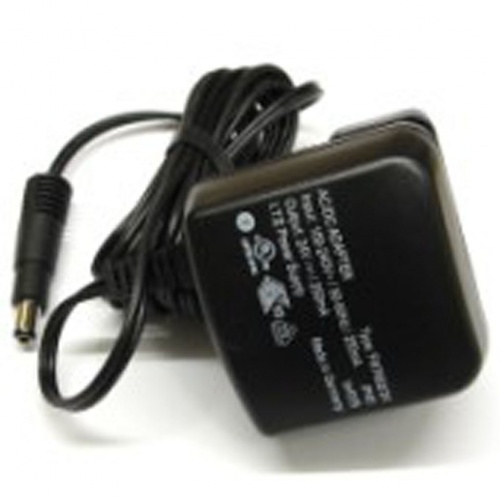

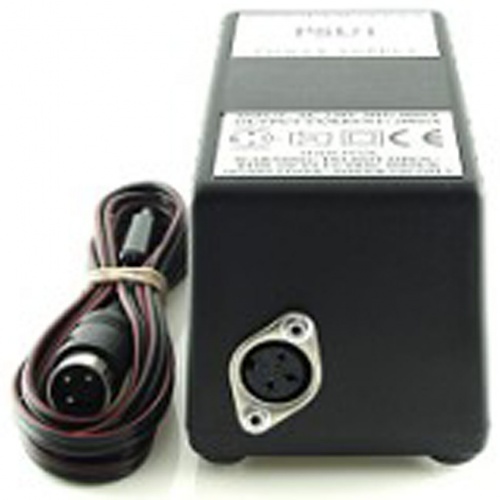

Graham Slee Revelation C Moving Coil/Moving Magnet Phono Stage (supplied with PSU1 uni-polar power supply)

Welcome to the new world of musical realism with the Revelation phono stage!

With dedicated versions for moving magnet and moving coil cartridges, the Revelation is a multi format version of our flagship Reflex phono stage.

The multiple curves selectable from the matrix of front panel switches can make early LPs and 78 rpm records sound as tonally balanced and fresh as some of todays modern vinyl records, thus making a Revelation a must for the serious collector.

• Equalisation settings for virtually all electric phonograph records
• Revelation M for moving magnet/Revelation C for moving coil
• Rear mounted mono/stereo switch
• Reflex flagship performance in RIAA mode
• Fast-Active preamp and equalisation technology
• Low latency EQ for reduced record noise annoyance

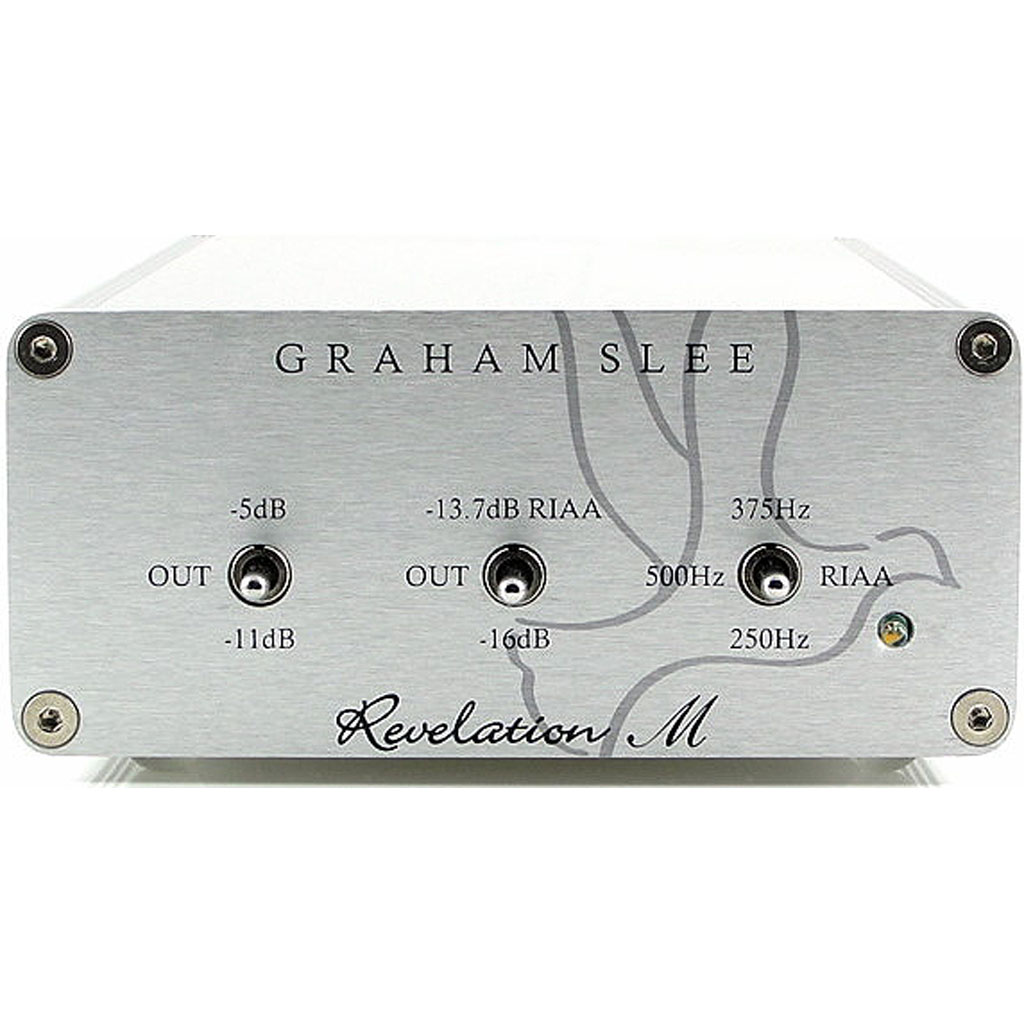

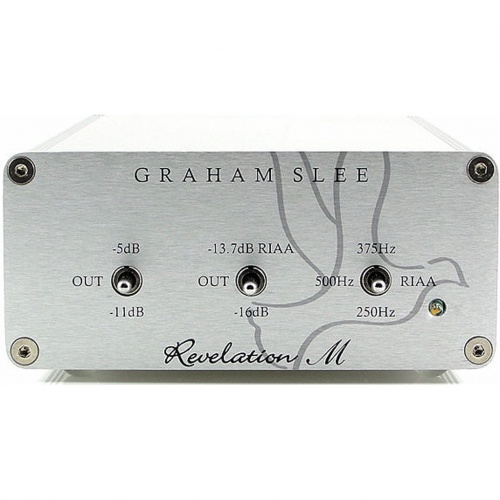

Revelation M for moving magnet

• Input sensitivity range: 2mV to 10mV
• Output range (for above inputs): 224mV to 1120mV
• Maximum input: 46mV rms
• Maximum output: 5.2V rms
• Gain: 41dB (112) at 1kHz
• Input impedance: 47k Ohms plus 100pF (200pF approx. with arm cable capacitance)
• Output impedance (driving impedance): 1k Ohm (will drive 10k Ohms and above)
• Noise at output: -68dB CCIR Q-pk; EIN: -109dB
• Distortion: typically 0.01%
• RIAA accuracy: < 0.3dB
• Frequency response: 20Hz - 200kHz ("flat", corrected to RIAA)
• Channel balance: 0.2dB
• Channel separation: 60dB
• Size (approx.):  W: 107 x H: 50 x D: 180 (mm) inc. jacks

Revelation C for moving coil

• Input range: 0.2mV to 1.0mV
• Output (for input range): 252mV to 1,260mV (1.26V)
• Maximum input: 3.9mV rms
• Maximum output: 4.914V rms
• Gain: 62dB (1,260) at 1kHz
• Input impedance: 100 Ohms
• Output (driving/source) impedance: 1k Ohm
• Recommended load impedance: 10k Ohm or greater
• Noise at output: -62dB CCIR Q-pk
• Equivalent input noise (EIN): -124dB
• Distortion: 0.02%
• RIAA accuracy: < 0.5dB
• Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)
• Channel balance: 0.2dB
• Channel separation: 64dB
• Size (approx.):  W: 107 x H: 50 x D: 180 (mm) inc. jacks
