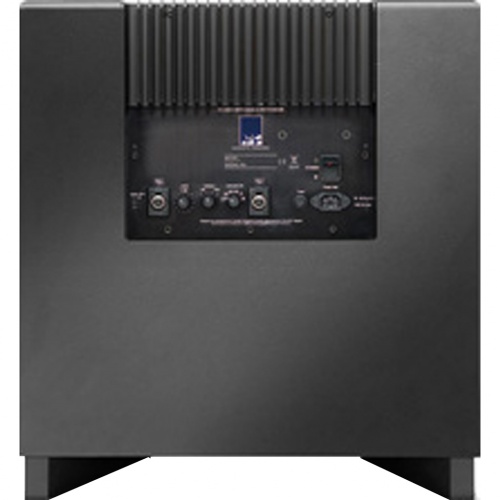

ATC C4 Subwoofer

ATC C4 Subwoofer

The C4 Collection can be easily integrated into any interior. Providing a natural progression from the C3 Collection, the C4's increased power handling and superior dynamic range offers a high performance solution to medium-size installations of approximately 50 square metres.

• Drivers: 314mm (12″)
• Cut-off Frequencies (-3dB free standing): 18Hz & 250Hz
• Max Continuous SPL: 112dB SPL @ 1 metre
• Input Connectors: 2 xMale XLR
• Input Sensitivity: 1V Balanced
• Input Impedance: >10k Ohms
• Common Mode Rejection: >90dB
• Harmonic Distortion (amplifier): <0.01%
• Amplifier Output Continuous: 650 Watts RMS
• Dynamic: 1000 Watts
• Overload Protection: Active FET momentary gain reduction
• Gain Control Range: ±6dB
• Contour Equaliser: 6dB lift @ 40 – 60Hz
• Filter Characteristics: 50Hz, 60Hz, 70Hz, 80Hz, 90Hz low pass second order critically damped
• Power Requirements: 100, 115, 230V (factory set for territory), 50/60Hz
• Cabinet Dimensions (HxWxD): 581 x 530 x 530mm (22.9″ x 20.9″ x 20.9″)
• Overall Weight: 68kg (150lb)
• Cabinet Finish: Standard real wood veneers are available in Black Ash, Mahogany, Cherry and Natural Oak. Other veneers and finishes can also be supplied to special order.
