Metrum Onyx Digital Analogue Converter

Metrum Onyx Digital Analogue Converter
  Zoom
Metrum Onyx Digital Analogue ConverterMetrum Onyx Digital Analogue ConverterMetrum Onyx Digital Analogue ConverterMetrum Onyx Digital Analogue Converter
£2,350.00
(£1,958.33 Exc. VAT)




Special Order Only

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

  • Balanced Digital to Analogue Converter
  • 24 Bits Non Oversampling
  • Forward (FPGA) corrected
  • 2 DAC'S per channel in differential mode
  • 15 VA toroidal transformer
Metrum Acoustics
Secured by Thawte

Why buy from us?

Metrum Acoustics Onyx Digital to Analogue Conversion

With the goal of creating a very affordable yet superior DAC in mind, the designers of Metrum Acoustics have developed a new DAC, the ONYX By Metrum Acoustics. It was an unprecedented challenge, which was eventually solved by using an entirely new chip, which has been exclusively developed by Metrum Acoustics and was first used in the PAVANE.

The parallel driven R2R ladder networks as used in the four DAC modules performs , especially when combined with our FPGA-driven “forward correction module”, on a higher level. This module splits up the audio samples for each channel into new separate data streams. Each dac cluster processes a portion of the data in the most linear region of the dac chips. The result of this process is an extremely high linearity, right down to -140 dB, which gives the ONYX a realistic 24 bit dynamic range. Due to the dual mono design over the entire frequency range an extremely high channel separation of 120 dB is realized. This contributes to the flawless positioning of instruments.

In short, the ONYX is a DAC that has taken all the lessons and experiences that her designer has learned over the years, and combined them in an ambitious DAC that can fit in every system. It is musical, honors the Non-oversampling principle while simultaneously incorporating the technological progress that has been made over the years.

Shipping typically 3-5 days
  • Balanced Digital to Analog Converter
  • 24 Bits Non Oversampling
  • Forward (FPGA) corrected
  • 2 DAC'S per channel in differential mode
  • 15 VA toroidal transformer
  • 110/115V AC 220/230V AC 60/50Hz

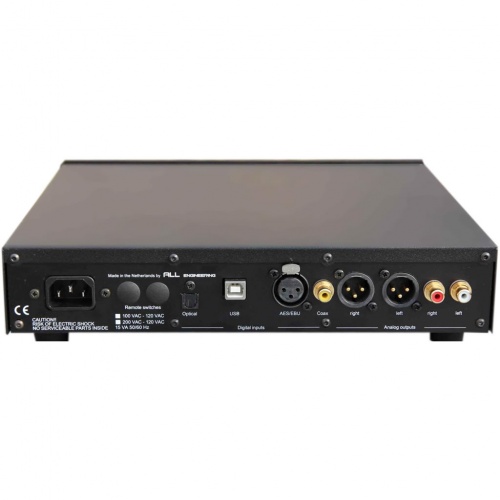

  • Input 1x optical, 1x coaxial 1x BNC and USB
  • Output 1x RCA Stereo Pair Single ended 2Volt RMS
  • Output 1 x stereo pair XLR: 4 Volt RMS
  • Frequency Response 44.1 kHz sampling 1Hz – 20 khz -1 dB
  • Frequency Response 192 kHz sampling 1Hz – 65 kHz – 1 dB 192 and 384kHz (USB)
  • Distortion 0.006 % THD
  • Noise Floor -145 dB related to 2 Volt RMS
  • Output impedance RCA 100 Ohm, XLR 100 Ohm
  • Sampling rate Optical 44.1 – 96 kHz
  • Sampling rate Coax and AES/EBU: 44.1 -192 kHz
  • Sampling rate USB 44.1 – 384kHz
  • Dimensions 290 x 250 x 60 mm
  • Weight 3.1KG
